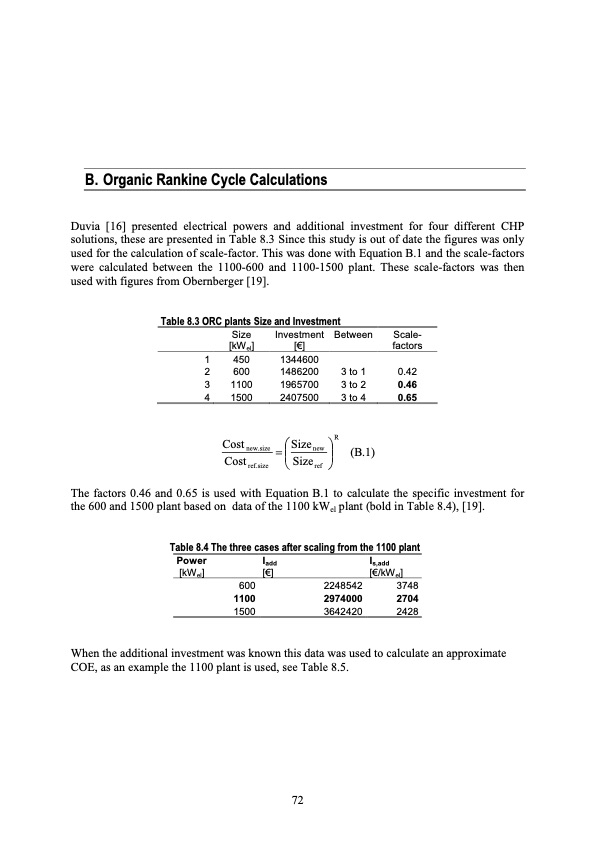

B. Organic Rankine Cycle Calculations Duvia [16] presented electrical powers and additional investment for four different CHP solutions, these are presented in Table 8.3 Since this study is out of date the figures was only used for the calculation of scale-factor. This was done with Equation B.1 and the scale-factors were calculated between the 1100-600 and 1100-1500 plant. These scale-factors was then used with figures from Obernberger [19]. Table 8.3 ORC plants Size and Investment Size Investment [kWel] [€] 450 1344600 600 1486200 1100 1965700 1500 2407500 Cost Size R new.size = new Between Scale- factors 1 2 3 4 The factors 0.46 and 0.65 is the 600 and 1500 plant based 3 to 1 0.42 3 to 2 0.46 3 to 4 0.65 (B.1) Costref.size Sizeref used with Equation B.1 to calculate the specific investment for on data of the 1100 kWel plant (bold in Table 8.4), [19]. Table 8.4 The three cases after scaling from the 1100 plant Power [kWel] 600 1100 1500 Iadd [€] Is,add [€/kWel] 2248542 3748 2974000 2704 3642420 2428 When the additional investment was known this data was used to calculate an approximate COE, as an example the 1100 plant is used, see Table 8.5. 72PDF Image | Biomass Based Small Scale Combined Heat and Power Tech
