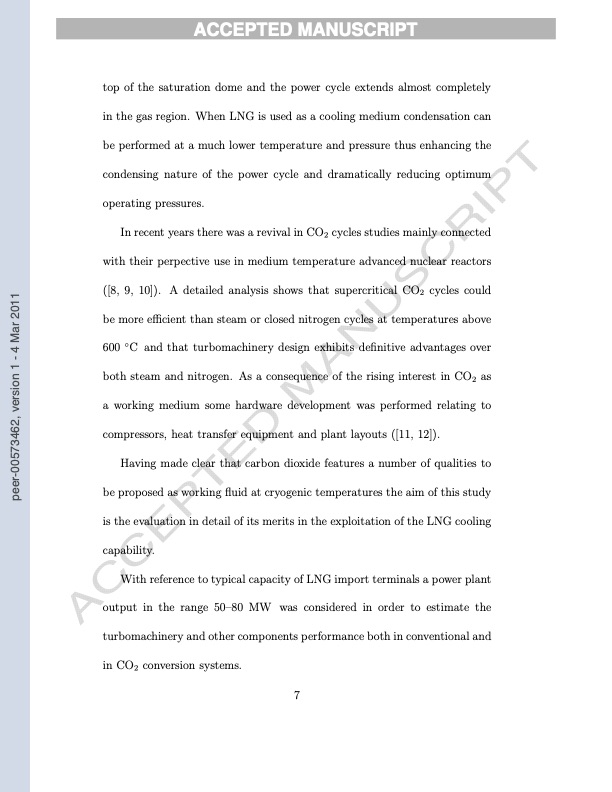

ACCEPTED MANUSCRIPT top of the saturation dome and the power cycle extends almost completely in the gas region. When LNG is used as a cooling medium condensation can be performed at a much lower temperature and pressure thus enhancing the condensing nature of the power cycle and dramatically reducing optimum operating pressures. In recent years there was a revival in CO2 cycles studies mainly connected with their perpective use in medium temperature advanced nuclear reactors ([8, 9, 10]). A detailed analysis shows that supercritical CO2 cycles could be more efficient than steam or closed nitrogen cycles at temperatures above 600 ◦C and that turbomachinery design exhibits definitive advantages over both steam and nitrogen. As a consequence of the rising interest in CO2 as a working medium some hardware development was performed relating to compressors, heat transfer equipment and plant layouts ([11, 12]). Having made clear that carbon dioxide features a number of qualities to be proposed as working fluid at cryogenic temperatures the aim of this study is the evaluation in detail of its merits in the exploitation of the LNG cooling capability. With reference to typical capacity of LNG import terminals a power plant output in the range 50–80 MW was considered in order to estimate the turbomachinery and other components performance both in conventional and in CO2 conversion systems. 7 peer-00573462, version 1 - 4 Mar 2011PDF Image | Class Action Information Notice Ormat Technologies
