PDF Publication Title:

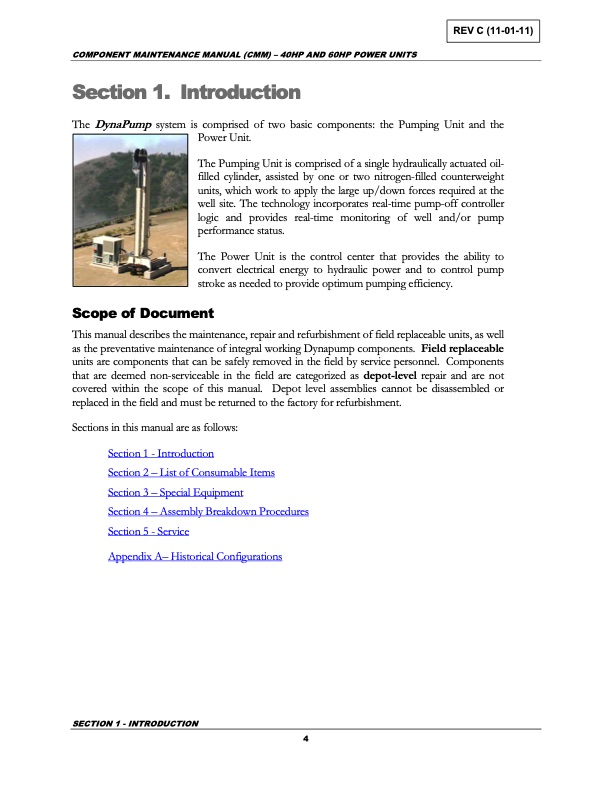

Text from PDF Page: 006
COMPONENT MAINTENANCE MANUAL (CMM) – 40HP AND 60HP POWER UNITS Section1. Introduction The DynaPump system is comprised of two basic components: the Pumping Unit and the Power Unit. The Pumping Unit is comprised of a single hydraulically actuated oil- filled cylinder, assisted by one or two nitrogen-filled counterweight units, which work to apply the large up/down forces required at the well site. The technology incorporates real-time pump-off controller logic and provides real-time monitoring of well and/or pump performance status. The Power Unit is the control center that provides the ability to convert electrical energy to hydraulic power and to control pump stroke as needed to provide optimum pumping efficiency. Scope of Document This manual describes the maintenance, repair and refurbishment of field replaceable units, as well as the preventative maintenance of integral working Dynapump components. Field replaceable units are components that can be safely removed in the field by service personnel. Components that are deemed non-serviceable in the field are categorized as depot-level repair and are not covered within the scope of this manual. Depot level assemblies cannot be disassembled or replaced in the field and must be returned to the factory for refurbishment. Sections in this manual are as follows: Section 1 - Introduction Section 2 – List of Consumable Items Section 3 – Special Equipment Section 4 – Assembly Breakdown Procedures Section 5 - Service Appendix A– Historical Configurations SECTION 1 - INTRODUCTION 4 REV C (11-01-11)PDF Image | DynaPump Component Maintenance Manual
PDF Search Title:
DynaPump Component Maintenance ManualOriginal File Name Searched:
MAN_CMM_002C.pdfDIY PDF Search: Google It | Yahoo | Bing
