PDF Publication Title:
Text from PDF Page: 019

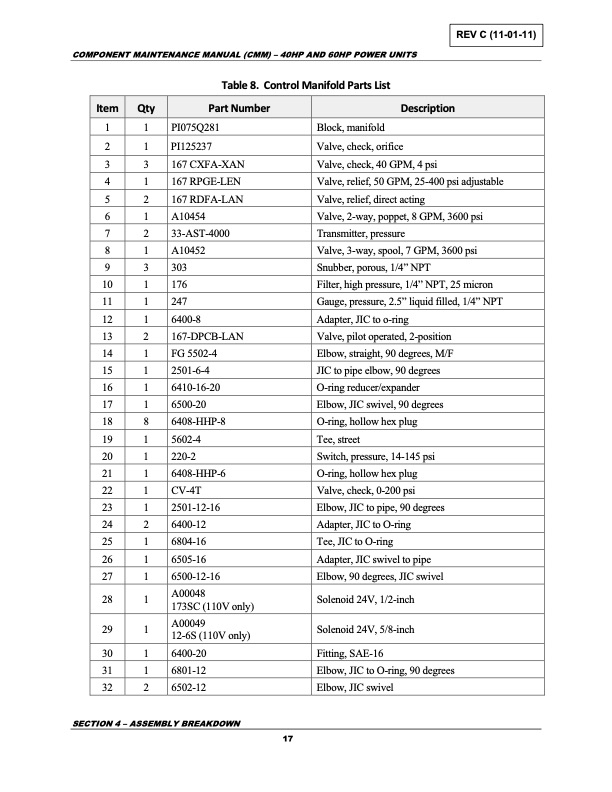

COMPONENT MAINTENANCE MANUAL (CMM) – 40HP AND 60HP POWER UNITS Table 8. Control Manifold Parts List Item Qty Part Number Description 1 1 2 1 3 3 4 1 5 2 6 1 7 2 8 1 9 3 10 1 11 1 12 1 13 2 14 1 15 1 16 1 17 1 18 8 19 1 20 1 21 1 22 1 23 1 24 2 25 1 26 1 27 1 28 1 29 1 30 1 31 1 32 2 PI075Q281 PI125237 167 CXFA-XAN 167 RPGE-LEN 167 RDFA-LAN A10454 33-AST-4000 A10452 303 176 247 6400-8 167-DPCB-LAN FG 5502-4 2501-6-4 6410-16-20 6500-20 6408-HHP-8 5602-4 220-2 6408-HHP-6 CV-4T 2501-12-16 6400-12 6804-16 6505-16 6500-12-16 A00048 173SC (110V only) A00049 12-6S (110V only) 6400-20 6801-12 6502-12 Block, manifold Valve, check, orifice Valve, check, 40 GPM, 4 psi Valve, relief, 50 GPM, 25-400 psi adjustable Valve, relief, direct acting Valve, 2-way, poppet, 8 GPM, 3600 psi Transmitter, pressure Valve, 3-way, spool, 7 GPM, 3600 psi Snubber, porous, 1/4” NPT Filter, high pressure, 1/4” NPT, 25 micron Gauge, pressure, 2.5” liquid filled, 1/4” NPT Adapter, JIC to o-ring Valve, pilot operated, 2-position Elbow, straight, 90 degrees, M/F JIC to pipe elbow, 90 degrees O-ring reducer/expander Elbow, JIC swivel, 90 degrees O-ring, hollow hex plug Tee, street Switch, pressure, 14-145 psi O-ring, hollow hex plug Valve, check, 0-200 psi Elbow, JIC to pipe, 90 degrees Adapter, JIC to O-ring Tee, JIC to O-ring Adapter, JIC swivel to pipe Elbow, 90 degrees, JIC swivel Solenoid 24V, 1/2-inch Solenoid 24V, 5/8-inch Fitting, SAE-16 Elbow, JIC to O-ring, 90 degrees Elbow, JIC swivel SECTION 4 – ASSEMBLY BREAKDOWN 17 REV C (11-01-11)PDF Image | DynaPump Component Maintenance Manual
PDF Search Title:
DynaPump Component Maintenance ManualOriginal File Name Searched:
MAN_CMM_002C.pdfDIY PDF Search: Google It | Yahoo | Bing
