PDF Publication Title:
Text from PDF Page: 037

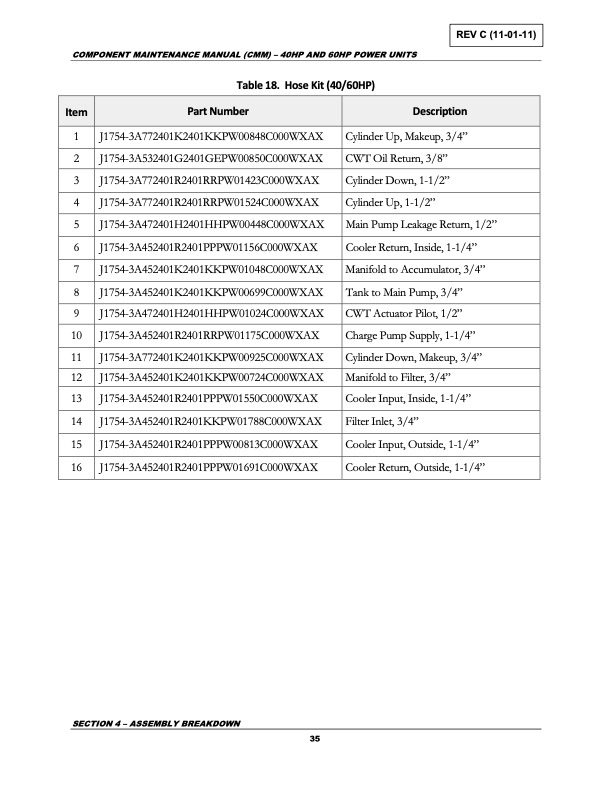

COMPONENT MAINTENANCE MANUAL (CMM) – 40HP AND 60HP POWER UNITS REV C (11-01-11) Table 18. Hose Kit (40/60HP) Item Part Number Description 1 J1754-3A772401K2401KKPW00848C000WXAX 2 J1754-3A532401G2401GEPW00850C000WXAX 3 J1754-3A772401R2401RRPW01423C000WXAX 4 J1754-3A772401R2401RRPW01524C000WXAX 5 J1754-3A472401H2401HHPW00448C000WXAX 6 J1754-3A452401R2401PPPW01156C000WXAX 7 J1754-3A452401K2401KKPW01048C000WXAX 8 J1754-3A452401K2401KKPW00699C000WXAX 9 J1754-3A472401H2401HHPW01024C000WXAX 10 J1754-3A452401R2401RRPW01175C000WXAX 11 J1754-3A772401K2401KKPW00925C000WXAX 12 J1754-3A452401K2401KKPW00724C000WXAX 13 J1754-3A452401R2401PPPW01550C000WXAX 14 J1754-3A452401R2401KKPW01788C000WXAX 15 J1754-3A452401R2401PPPW00813C000WXAX 16 J1754-3A452401R2401PPPW01691C000WXAX Cylinder Up, Makeup, 3/4” CWT Oil Return, 3/8” Cylinder Down, 1-1/2” Cylinder Up, 1-1/2” Main Pump Leakage Return, 1/2” Cooler Return, Inside, 1-1/4” Manifold to Accumulator, 3/4” Tank to Main Pump, 3/4” CWT Actuator Pilot, 1/2” Charge Pump Supply, 1-1/4” Cylinder Down, Makeup, 3/4” Manifold to Filter, 3/4” Cooler Input, Inside, 1-1/4” Filter Inlet, 3/4” Cooler Input, Outside, 1-1/4” Cooler Return, Outside, 1-1/4” SECTION 4 – ASSEMBLY BREAKDOWN 35PDF Image | DynaPump Component Maintenance Manual
PDF Search Title:
DynaPump Component Maintenance ManualOriginal File Name Searched:
MAN_CMM_002C.pdfDIY PDF Search: Google It | Yahoo | Bing
