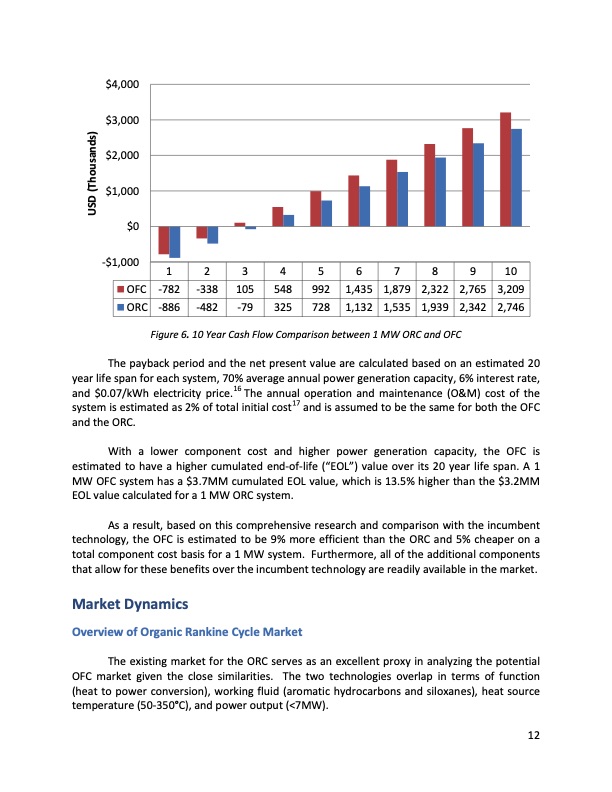

$4,000 $3,000 $2,000 $1,000 $0 -$1,000 The payback period and the net present value are calculated based on an estimated 20 year life span for each system, 70% average annual power generation capacity, 6% interest rate, and $0.07/kWh electricity price.16 The annual operation and maintenance (O&M) cost of the system is estimated as 2% of total initial cost17 and is assumed to be the same for both the OFC and the ORC. With a lower component cost and higher power generation capacity, the OFC is estimated to have a higher cumulated end-of-life (“EOL”) value over its 20 year life span. A 1 MW OFC system has a $3.7MM cumulated EOL value, which is 13.5% higher than the $3.2MM EOL value calculated for a 1 MW ORC system. As a result, based on this comprehensive research and comparison with the incumbent technology, the OFC is estimated to be 9% more efficient than the ORC and 5% cheaper on a total component cost basis for a 1 MW system. Furthermore, all of the additional components that allow for these benefits over the incumbent technology are readily available in the market. Market Dynamics Overview of Organic Rankine Cycle Market The existing market for the ORC serves as an excellent proxy in analyzing the potential OFC market given the close similarities. The two technologies overlap in terms of function (heat to power conversion), working fluid (aromatic hydrocarbons and siloxanes), heat source temperature (50-350°C), and power output (<7MW). 1 2 3 4 5 6 7 8 9 10 OFC -782 -338 105 548 992 1,435 1,879 2,322 2,765 3,209 ORC -886 -482 -79 325 728 1,132 1,535 1,939 2,342 2,746 Figure 6. 10 Year Cash Flow Comparison between 1 MW ORC and OFC 12 USD (Thousands)PDF Image | ElectraTherm Commissions 10 Green Machines
