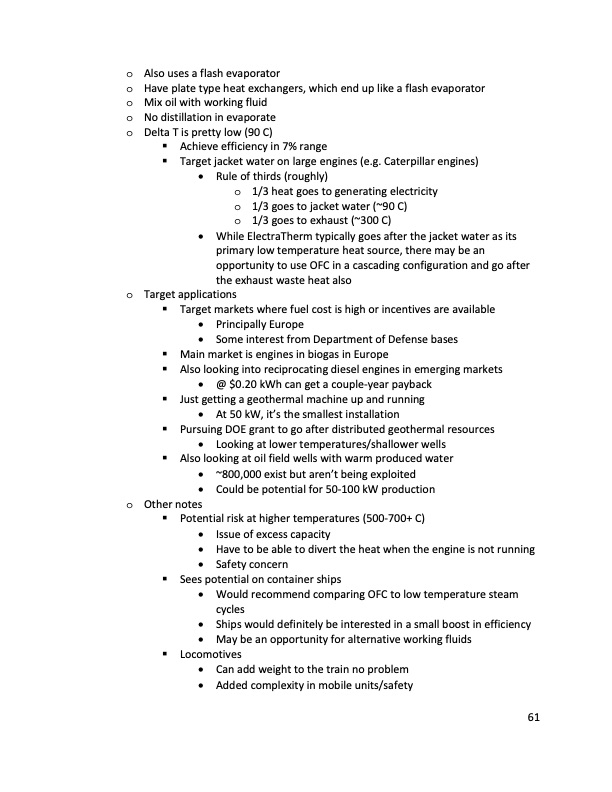

o Also uses a flash evaporator o Have plate type heat exchangers, which end up like a flash evaporator o Mix oil with working fluid o No distillation in evaporate o DeltaTisprettylow(90C) Achieve efficiency in 7% range Target jacket water on large engines (e.g. Caterpillar engines) • Rule of thirds (roughly) o 1/3 heat goes to generating electricity o 1/3 goes to jacket water (~90 C) o 1/3 goes to exhaust (~300 C) • While ElectraTherm typically goes after the jacket water as its primary low temperature heat source, there may be an opportunity to use OFC in a cascading configuration and go after the exhaust waste heat also o Target applications Target markets where fuel cost is high or incentives are available • Principally Europe • Some interest from Department of Defense bases Main market is engines in biogas in Europe Also looking into reciprocating diesel engines in emerging markets • @ $0.20 kWh can get a couple-year payback Just getting a geothermal machine up and running • At 50 kW, it’s the smallest installation Pursuing DOE grant to go after distributed geothermal resources • Looking at lower temperatures/shallower wells Also looking at oil field wells with warm produced water • ~800,000 exist but aren’t being exploited • Could be potential for 50-100 kW production o Othernotes Potential risk at higher temperatures (500-700+ C) • Issue of excess capacity • Have to be able to divert the heat when the engine is not running • Safety concern Sees potential on container ships • Would recommend comparing OFC to low temperature steam cycles • Ships would definitely be interested in a small boost in efficiency • May be an opportunity for alternative working fluids Locomotives • Can add weight to the train no problem • Added complexity in mobile units/safety 61PDF Image | ElectraTherm Commissions 10 Green Machines
