Text from PDF Page: 011

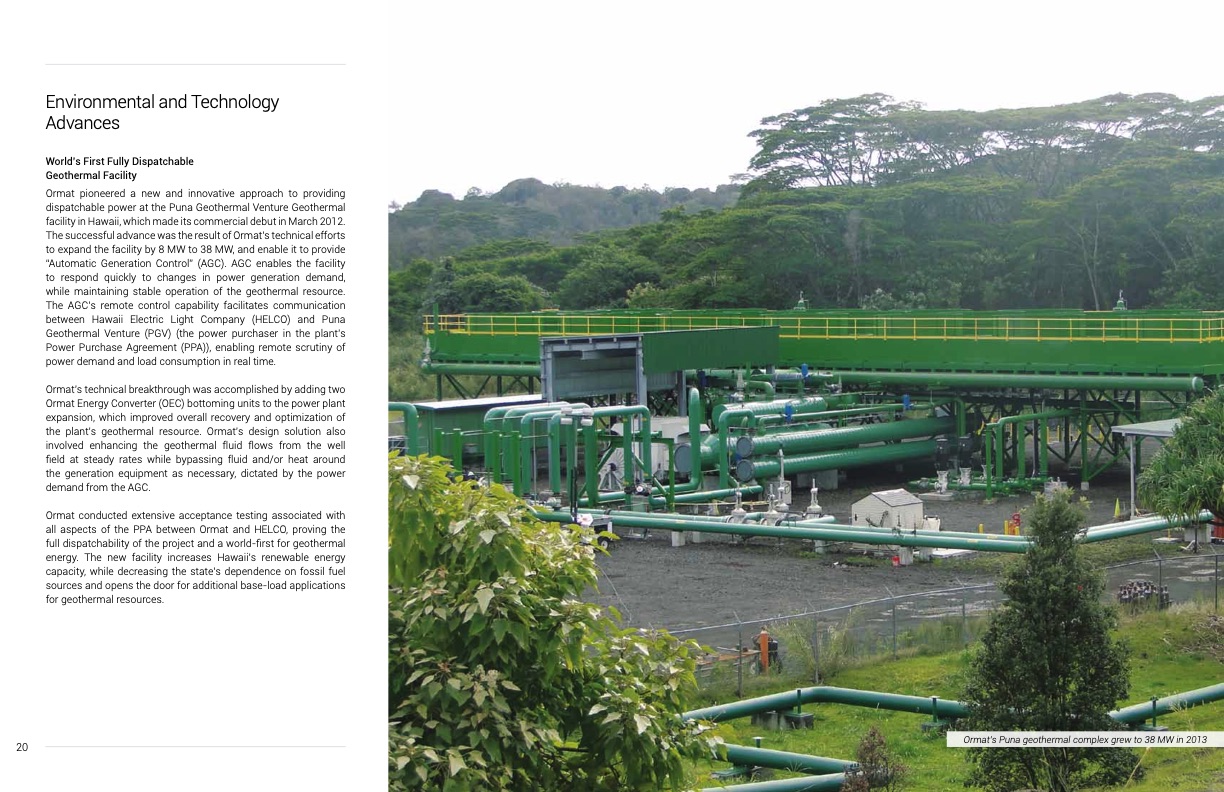

20 Environmental and Technology Advances World’s First Fully Dispatchable Geothermal Facility Ormat pioneered a new and innovative approach to providing dispatchable power at the Puna Geothermal Venture Geothermal facility in Hawaii, which made its commercial debut in March 2012. The successful advance was the result of Ormat’s technical efforts to expand the facility by 8 MW to 38 MW, and enable it to provide “Automatic Generation Control” (AGC). AGC enables the facility to respond quickly to changes in power generation demand, while maintaining stable operation of the geothermal resource. The AGC’s remote control capability facilitates communication between Hawaii Electric Light Company (HELCO) and Puna Geothermal Venture (PGV) (the power purchaser in the plant’s Power Purchase Agreement (PPA)), enabling remote scrutiny of power demand and load consumption in real time. Ormat’s technical breakthrough was accomplished by adding two Ormat Energy Converter (OEC) bottoming units to the power plant expansion, which improved overall recovery and optimization of the plant’s geothermal resource. Ormat’s design solution also involved enhancing the geothermal fluid flows from the well field at steady rates while bypassing fluid and/or heat around the generation equipment as necessary, dictated by the power demand from the AGC. Ormat conducted extensive acceptance testing associated with all aspects of the PPA between Ormat and HELCO, proving the full dispatchability of the project and a world-first for geothermal energy. The new facility increases Hawaii’s renewable energy capacity, while decreasing the state’s dependence on fossil fuel sources and opens the door for additional base-load applications for geothermal resources. Ormat Technologies, Inc. 2012-2013 Sustainability Report Ormat’s Puna geothermal complex grew to 38 MW in 2013 21PDF Image | Ormat Technologies
