PDF Publication Title:
Text from PDF Page: 007

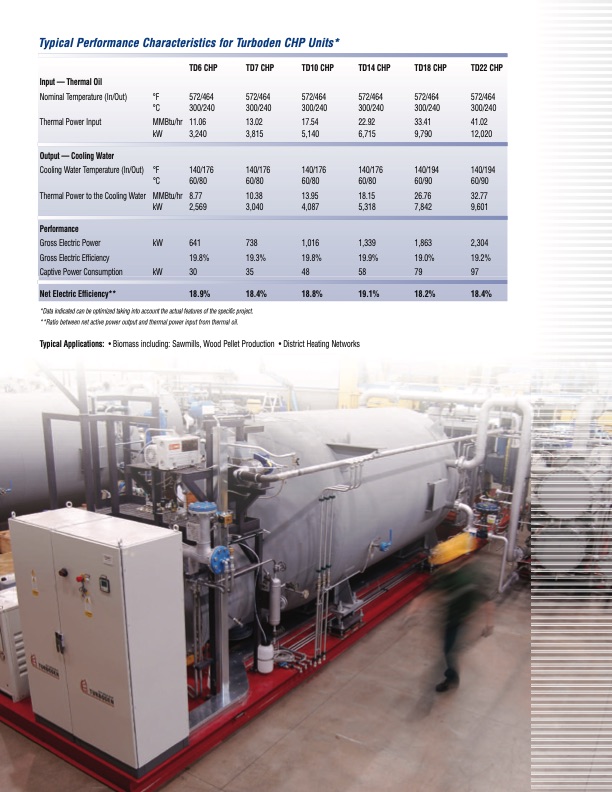

Typical Performance Characteristics for Turboden CHP Units* Input — Thermal Oil Nominal Temperature (In/Out) °F 572/464 °C 300/240 572/464 300/240 22.92 6,715 140/176 60/80 18.15 5,318 1,339 19.9% 58 19.1% 572/464 300/240 33.41 9,790 140/194 60/90 26.76 7,842 1,863 19.0% 79 18.2% 572/464 300/240 41.02 12,020 140/194 60/90 32.77 9,601 2,304 19.2% 97 18.4% Thermal Power Input Output — Cooling Water Cooling Water Temperature (In/Out) Thermal Power to the Cooling Water Performance Gross Electric Power Gross Electric Efficiency Captive Power Consumption Net Electric Efficiency** MMBtu/hr 11.06 kW 3,240 °F 140/176 °C 60/80 MMBtu/hr 8.77 kW 2,569 kW 641 19.8% kW 30 18.9% TD6 CHP TD7 CHP 572/464 300/240 13.02 3,815 140/176 60/80 10.38 3,040 738 19.3% 35 18.4% TD10 CHP 572/464 300/240 17.54 5,140 140/176 60/80 13.95 4,087 1,016 19.8% 48 18.8% TD14 CHP TD18 CHP TD22 CHP *Data indicated can be optimized taking into account the actual features of the specific project. **Ratio between net active power output and thermal power input from thermal oil. Typical Applications: • Biomass including: Sawmills, Wood Pellet Production • District Heating NetworksPDF Image | Pratt & Whitney Power Systems Organic Rankine Cycle Technology
