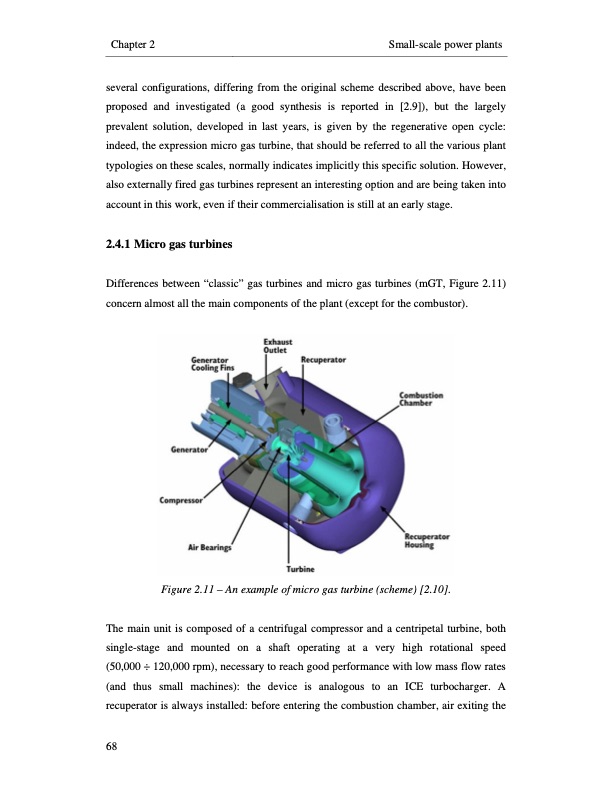

Chapter 2 Small-scale power plants several configurations, differing from the original scheme described above, have been proposed and investigated (a good synthesis is reported in [2.9]), but the largely prevalent solution, developed in last years, is given by the regenerative open cycle: indeed, the expression micro gas turbine, that should be referred to all the various plant typologies on these scales, normally indicates implicitly this specific solution. However, also externally fired gas turbines represent an interesting option and are being taken into account in this work, even if their commercialisation is still at an early stage. 2.4.1 Micro gas turbines Differences between “classic” gas turbines and micro gas turbines (mGT, Figure 2.11) concern almost all the main components of the plant (except for the combustor). Figure 2.11 – An example of micro gas turbine (scheme) [2.10]. The main unit is composed of a centrifugal compressor and a centripetal turbine, both single-stage and mounted on a shaft operating at a very high rotational speed (50,000 ÷ 120,000 rpm), necessary to reach good performance with low mass flow rates (and thus small machines): the device is analogous to an ICE turbocharger. A recuperator is always installed: before entering the combustion chamber, air exiting the 68PDF Image | SMALL-SCALE BIOMASS POWER GENERATION
