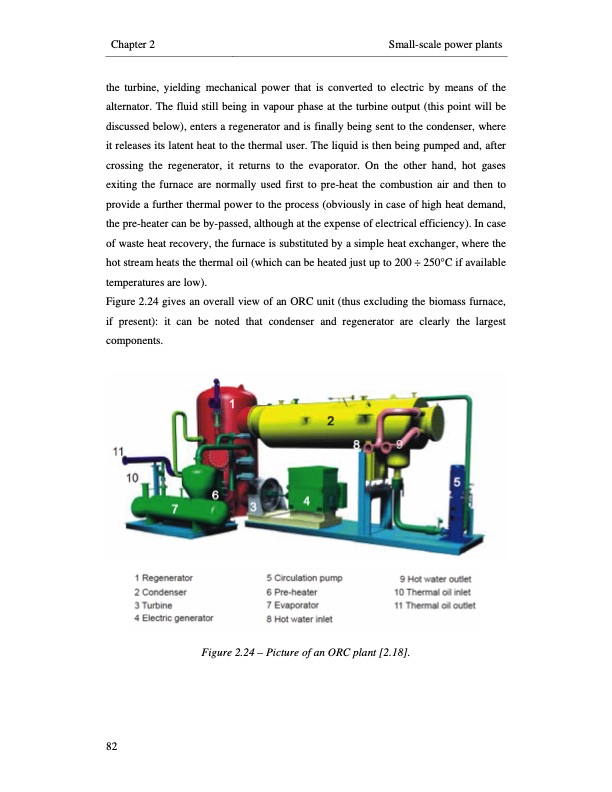

Chapter 2 Small-scale power plants the turbine, yielding mechanical power that is converted to electric by means of the alternator. The fluid still being in vapour phase at the turbine output (this point will be discussed below), enters a regenerator and is finally being sent to the condenser, where it releases its latent heat to the thermal user. The liquid is then being pumped and, after crossing the regenerator, it returns to the evaporator. On the other hand, hot gases exiting the furnace are normally used first to pre-heat the combustion air and then to provide a further thermal power to the process (obviously in case of high heat demand, the pre-heater can be by-passed, although at the expense of electrical efficiency). In case of waste heat recovery, the furnace is substituted by a simple heat exchanger, where the hot stream heats the thermal oil (which can be heated just up to 200 ÷ 250°C if available temperatures are low). Figure 2.24 gives an overall view of an ORC unit (thus excluding the biomass furnace, if present): it can be noted that condenser and regenerator are clearly the largest components. Figure 2.24 – Picture of an ORC plant [2.18]. 82PDF Image | SMALL-SCALE BIOMASS POWER GENERATION
