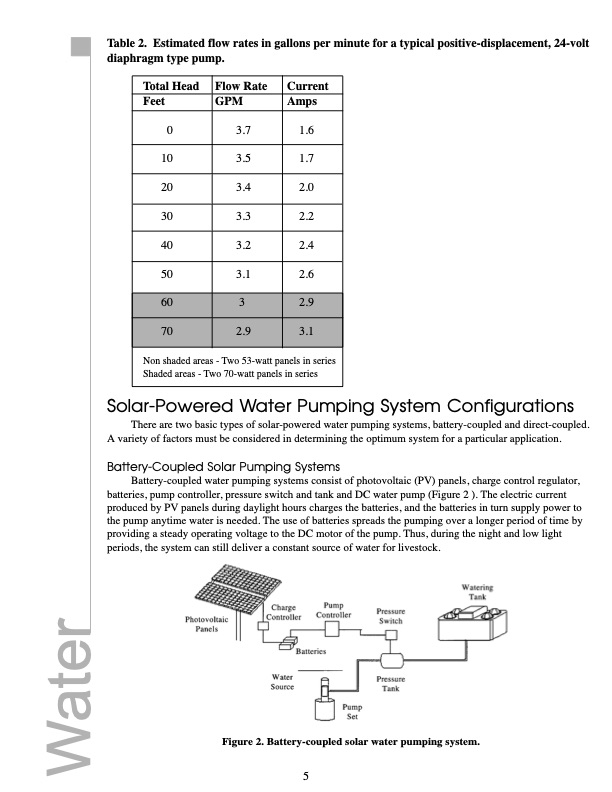

Table 2. Estimated flow rates in gallons per minute for a typical positive-displacement, 24-volt diaphragm type pump. Total Head Flow Rate Current Feet GPM Amps 0 3.7 1.6 10 3.5 1.7 20 3.4 2.0 30 3.3 2.2 40 3.2 2.4 50 3.1 2.6 60 3 2.9 70 2.9 3.1 Non shaded areas - Two 53-watt panels in series Shaded areas - Two 70-watt panels in series Solar-Powered Water Pumping System Configurations There are two basic types of solar-powered water pumping systems, battery-coupled and direct-coupled. A variety of factors must be considered in determining the optimum system for a particular application. Battery-Coupled Solar Pumping Systems Battery-coupled water pumping systems consist of photovoltaic (PV) panels, charge control regulator, batteries, pump controller, pressure switch and tank and DC water pump (Figure 2 ). The electric current produced by PV panels during daylight hours charges the batteries, and the batteries in turn supply power to the pump anytime water is needed. The use of batteries spreads the pumping over a longer period of time by providing a steady operating voltage to the DC motor of the pump. Thus, during the night and low light periods, the system can still deliver a constant source of water for livestock. Figure 2. Battery-coupled solar water pumping system. 5 WaterPDF Image | Solar-Powered Livestock Watering Systems
