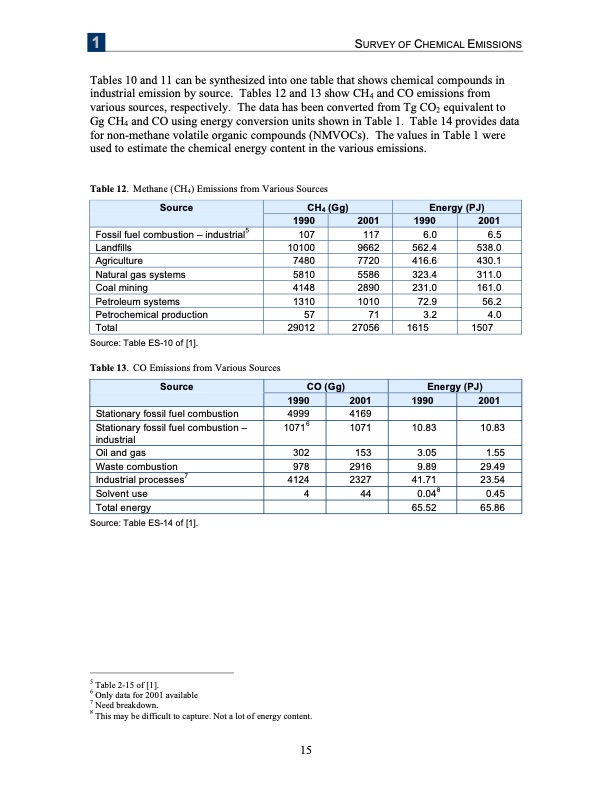

1 SURVEY OF CHEMICAL EMISSIONS Tables 10 and 11 can be synthesized into one table that shows chemical compounds in industrial emission by source. Tables 12 and 13 show CH4 and CO emissions from various sources, respectively. The data has been converted from Tg CO2 equivalent to Gg CH4 and CO using energy conversion units shown in Table 1. Table 14 provides data for non-methane volatile organic compounds (NMVOCs). The values in Table 1 were used to estimate the chemical energy content in the various emissions. Table 12. Methane (CH4) Emissions from Various Sources Source CH4 (Gg) Energy (PJ) 1990 2001 1990 2001 Fossil fuel combustion – industrial5 107 117 6.0 6.5 Landfills 10100 9662 562.4 538.0 Agriculture 7480 7720 416.6 430.1 Natural gas systems 5810 5586 323.4 311.0 Coal mining 4148 2890 231.0 161.0 Petroleum systems 1310 1010 72.9 56.2 Petrochemical production 57 71 3.2 4.0 Total 29012 27056 1615 1507 Source: Table ES-10 of [1]. Table 13. CO Emissions from Various Sources Source CO (Gg) Energy (PJ) 1990 2001 1990 2001 Stationary fossil fuel combustion 4999 4169 Stationary fossil fuel combustion – industrial 10716 1071 10.83 10.83 Oil and gas 302 153 3.05 1.55 Waste combustion 978 2916 9.89 29.49 Industrial processes7 4124 2327 41.71 23.54 Solvent use 4 44 0.048 0.45 Total energy 65.52 65.86 Source: Table ES-14 of [1]. 5 Table 2-15 of [1]. 6 Only data for 2001 available 7 Need breakdown. 8 This may be difficult to capture. Not a lot of energy content. 15PDF Image | Analysis for Recovering Energy from Industrial Waste Heat
