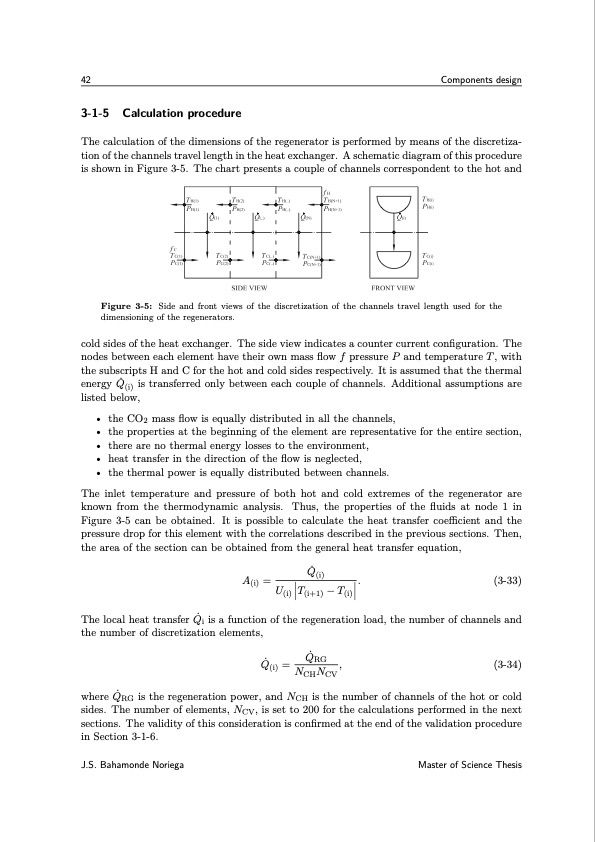

42 Components design 3-1-5 Calculation procedure The calculation of the dimensions of the regenerator is performed by means of the discretiza- tion of the channels travel length in the heat exchanger. A schematic diagram of this procedure is shown in Figure 3-5. The chart presents a couple of channels correspondent to the hot and Figure 3-5: Side and front views of the discretization of the channels travel length used for the dimensioning of the regenerators. cold sides of the heat exchanger. The side view indicates a counter current configuration. The nodes between each element have their own mass flow f pressure P and temperature T, with the subscripts H and C for the hot and cold sides respectively. It is assumed that the thermal energy Q ̇ (i) is transferred only between each couple of channels. Additional assumptions are listed below, • the CO2 mass flow is equally distributed in all the channels, • the properties at the beginning of the element are representative for the entire section, • there are no thermal energy losses to the environment, • heat transfer in the direction of the flow is neglected, • the thermal power is equally distributed between channels. The inlet temperature and pressure of both hot and cold extremes of the regenerator are known from the thermodynamic analysis. Thus, the properties of the fluids at node 1 in Figure 3-5 can be obtained. It is possible to calculate the heat transfer coefficient and the pressure drop for this element with the correlations described in the previous sections. Then, the area of the section can be obtained from the general heat transfer equation, A(i) = Q ̇(i) . (3-33) U(i) T(i+1) − T(i) The local heat transfer Q ̇ i is a function of the regeneration load, the number of channels and the number of discretization elements, Q ̇(i) = Q ̇RG , (3-34) NCH NCV where Q ̇ RG is the regeneration power, and NCH is the number of channels of the hot or cold sides. The number of elements, NCV, is set to 200 for the calculations performed in the next sections. The validity of this consideration is confirmed at the end of the validation procedure in Section 3-1-6. J.S. Bahamonde Noriega Master of Science ThesisPDF Image | Design method for s-CO2 gas turbine power plants
