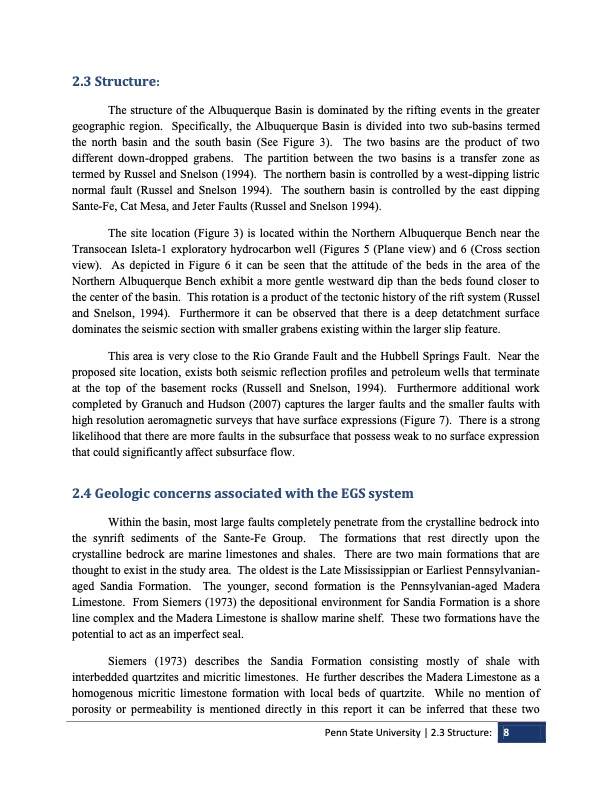

Text from PDF Page: 025
2.3 Structure: The structure of the Albuquerque Basin is dominated by the rifting events in the greater geographic region. Specifically, the Albuquerque Basin is divided into two sub-basins termed the north basin and the south basin (See Figure 3). The two basins are the product of two different down-dropped grabens. The partition between the two basins is a transfer zone as termed by Russel and Snelson (1994). The northern basin is controlled by a west-dipping listric normal fault (Russel and Snelson 1994). The southern basin is controlled by the east dipping Sante-Fe, Cat Mesa, and Jeter Faults (Russel and Snelson 1994). The site location (Figure 3) is located within the Northern Albuquerque Bench near the Transocean Isleta-1 exploratory hydrocarbon well (Figures 5 (Plane view) and 6 (Cross section view). As depicted in Figure 6 it can be seen that the attitude of the beds in the area of the Northern Albuquerque Bench exhibit a more gentle westward dip than the beds found closer to the center of the basin. This rotation is a product of the tectonic history of the rift system (Russel and Snelson, 1994). Furthermore it can be observed that there is a deep detatchment surface dominates the seismic section with smaller grabens existing within the larger slip feature. This area is very close to the Rio Grande Fault and the Hubbell Springs Fault. Near the proposed site location, exists both seismic reflection profiles and petroleum wells that terminate at the top of the basement rocks (Russell and Snelson, 1994). Furthermore additional work completed by Granuch and Hudson (2007) captures the larger faults and the smaller faults with high resolution aeromagnetic surveys that have surface expressions (Figure 7). There is a strong likelihood that there are more faults in the subsurface that possess weak to no surface expression that could significantly affect subsurface flow. 2.4 Geologic concerns associated with the EGS system Within the basin, most large faults completely penetrate from the crystalline bedrock into the synrift sediments of the Sante-Fe Group. The formations that rest directly upon the crystalline bedrock are marine limestones and shales. There are two main formations that are thought to exist in the study area. The oldest is the Late Mississippian or Earliest Pennsylvanian- aged Sandia Formation. The younger, second formation is the Pennsylvanian-aged Madera Limestone. From Siemers (1973) the depositional environment for Sandia Formation is a shore line complex and the Madera Limestone is shallow marine shelf. These two formations have the potential to act as an imperfect seal. Siemers (1973) describes the Sandia Formation consisting mostly of shale with interbedded quartzites and micritic limestones. He further describes the Madera Limestone as a homogenous micritic limestone formation with local beds of quartzite. While no mention of porosity or permeability is mentioned directly in this report it can be inferred that these two Penn State University | 2.3 Structure: 8PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
