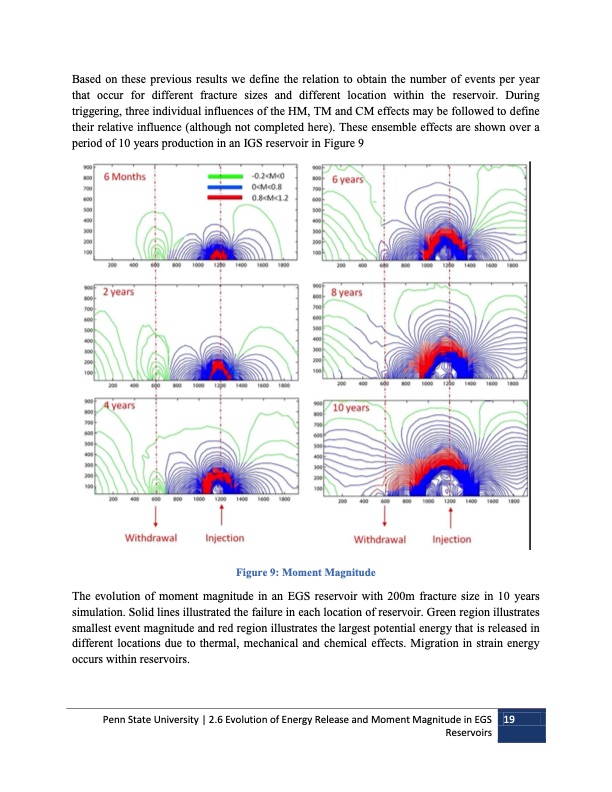

Based on these previous results we define the relation to obtain the number of events per year that occur for different fracture sizes and different location within the reservoir. During triggering, three individual influences of the HM, TM and CM effects may be followed to define their relative influence (although not completed here). These ensemble effects are shown over a period of 10 years production in an IGS reservoir in Figure 9 Figure 9: Moment Magnitude The evolution of moment magnitude in an EGS reservoir with 200m fracture size in 10 years simulation. Solid lines illustrated the failure in each location of reservoir. Green region illustrates smallest event magnitude and red region illustrates the largest potential energy that is released in different locations due to thermal, mechanical and chemical effects. Migration in strain energy occurs within reservoirs. Penn State University | 2.6 Evolution of Energy Release and Moment Magnitude in EGS Reservoirs 19PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
