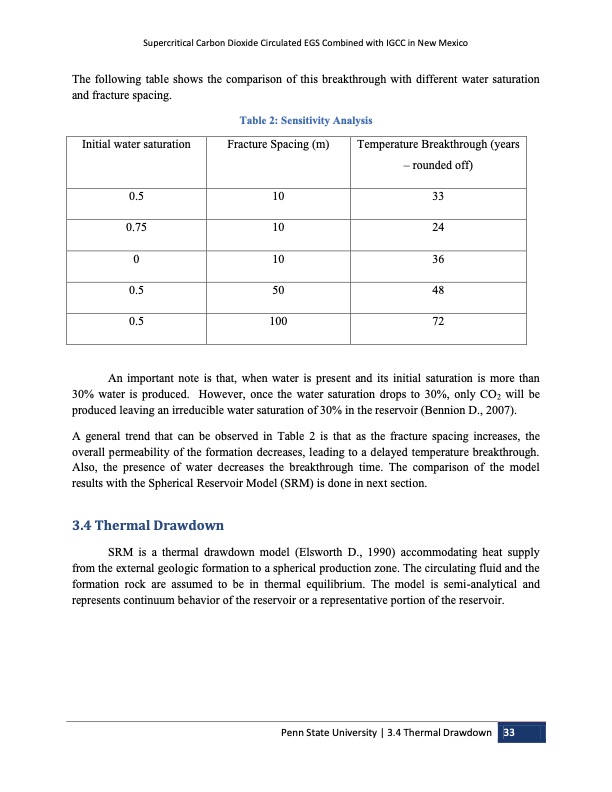

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico The following table shows the comparison of this breakthrough with different water saturation and fracture spacing. Table 2: Sensitivity Analysis 0.5 10 33 0.75 10 24 0 10 36 0.5 50 48 0.5 100 72 An important note is that, when water is present and its initial saturation is more than 30% water is produced. However, once the water saturation drops to 30%, only CO2 will be produced leaving an irreducible water saturation of 30% in the reservoir (Bennion D., 2007). A general trend that can be observed in Table 2 is that as the fracture spacing increases, the overall permeability of the formation decreases, leading to a delayed temperature breakthrough. Also, the presence of water decreases the breakthrough time. The comparison of the model results with the Spherical Reservoir Model (SRM) is done in next section. 3.4 Thermal Drawdown SRM is a thermal drawdown model (Elsworth D., 1990) accommodating heat supply from the external geologic formation to a spherical production zone. The circulating fluid and the formation rock are assumed to be in thermal equilibrium. The model is semi-analytical and represents continuum behavior of the reservoir or a representative portion of the reservoir. 3.1 3.2 3.3 Penn State University | 3.4 Thermal Drawdown 33 3.4 Initial water saturation Fracture Spacing (m) Temperature Breakthrough (years – rounded off)PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
