Text from PDF Page: 053

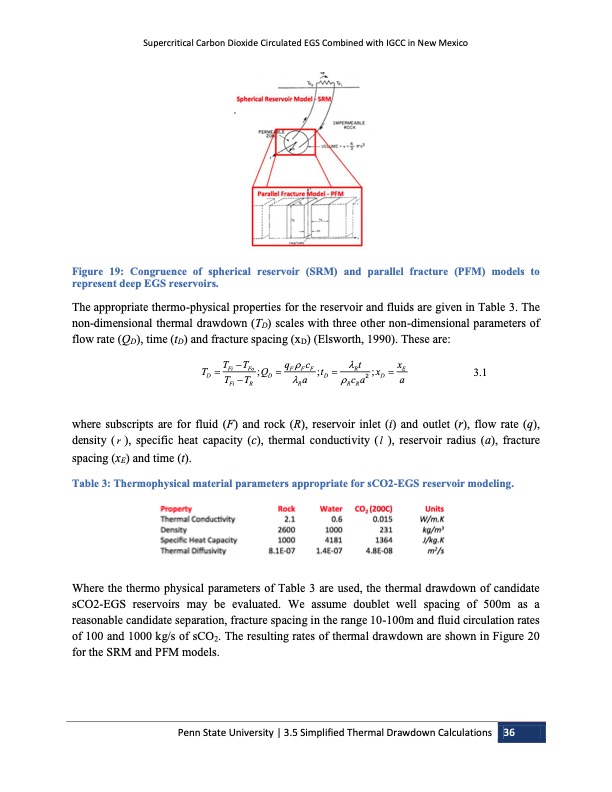

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico Figure 19: Congruence of spherical reservoir (SRM) and parallel fracture (PFM) models to represent deep EGS reservoirs. The appropriate thermo-physical properties for the reservoir and fluids are given in Table 3. The non-dimensional thermal drawdown (TD) scales with three other non-dimensional parameters of flow rate (QD), time (tD) and fracture spacing (xD) (Elsworth, 1990). These are: TTFiTFo;QqFFcF;t Rt;xxE DTTD aDca2Da 3.1 FiR R RR where subscripts are for fluid (F) and rock (R), reservoir inlet (i) and outlet (r), flow rate (q), density (r ), specific heat capacity (c), thermal conductivity (l ), reservoir radius (a), fracture spacing (xE) and time (t). Table 3: Thermophysical material parameters appropriate for sCO2-EGS reservoir modeling. Where the thermo physical parameters of Table 3 are used, the thermal drawdown of candidate sCO2-EGS reservoirs may be evaluated. We assume doublet well spacing of 500m as a reasonable candidate separation, fracture spacing in the range 10-100m and fluid circulation rates of 100 and 1000 kg/s of sCO2. The resulting rates of thermal drawdown are shown in Figure 20 for the SRM and PFM models. Penn State University | 3.5 Simplified Thermal Drawdown Calculations 36
