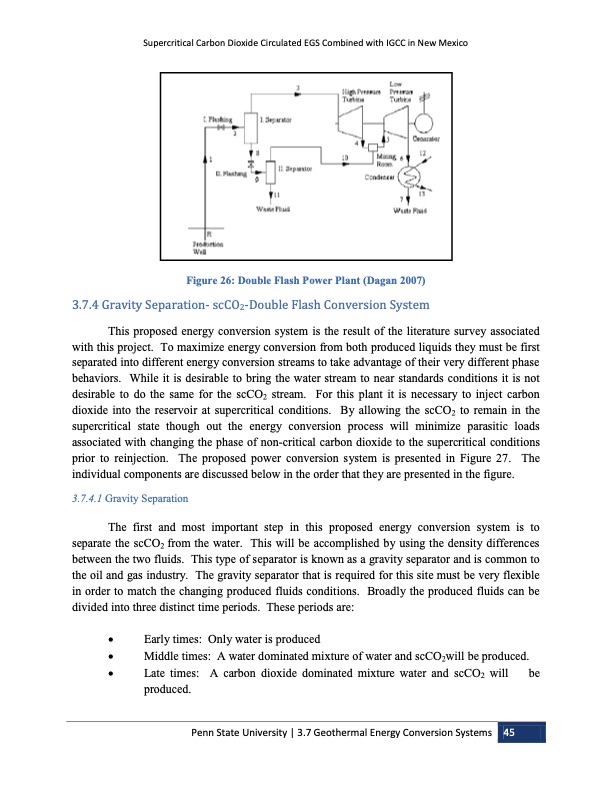

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico Figure 26: Double Flash Power Plant (Dagan 2007) 3.7.4 Gravity Separation- scCO2-Double Flash Conversion System This proposed energy conversion system is the result of the literature survey associated with this project. To maximize energy conversion from both produced liquids they must be first separated into different energy conversion streams to take advantage of their very different phase behaviors. While it is desirable to bring the water stream to near standards conditions it is not desirable to do the same for the scCO2 stream. For this plant it is necessary to inject carbon dioxide into the reservoir at supercritical conditions. By allowing the scCO2 to remain in the supercritical state though out the energy conversion process will minimize parasitic loads associated with changing the phase of non-critical carbon dioxide to the supercritical conditions prior to reinjection. The proposed power conversion system is presented in Figure 27. The individual components are discussed below in the order that they are presented in the figure. 3.7.4.1 Gravity Separation The first and most important step in this proposed energy conversion system is to separate the scCO2 from the water. This will be accomplished by using the density differences between the two fluids. This type of separator is known as a gravity separator and is common to the oil and gas industry. The gravity separator that is required for this site must be very flexible in order to match the changing produced fluids conditions. Broadly the produced fluids can be divided into three distinct time periods. These periods are: Early times: Only water is produced Middle times: A water dominated mixture of water and scCO2will be produced. Late times: A carbon dioxide dominated mixture water and scCO2 will be produced. Penn State University | 3.7 Geothermal Energy Conversion Systems 45PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
