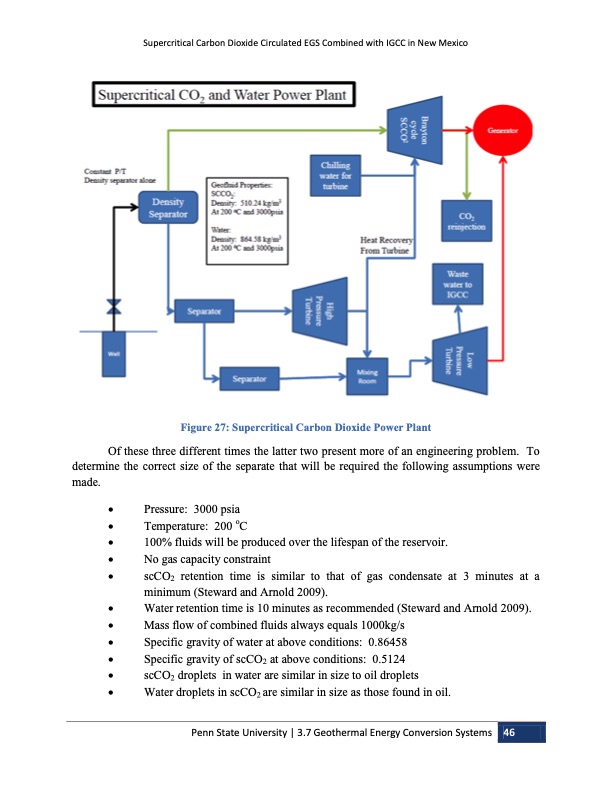

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico Figure 27: Supercritical Carbon Dioxide Power Plant Of these three different times the latter two present more of an engineering problem. To determine the correct size of the separate that will be required the following assumptions were made. Pressure: 3000 psia Temperature: 200 oC 100% fluids will be produced over the lifespan of the reservoir. No gas capacity constraint scCO2 retention time is similar to that of gas condensate at 3 minutes at a minimum (Steward and Arnold 2009). Water retention time is 10 minutes as recommended (Steward and Arnold 2009). Mass flow of combined fluids always equals 1000kg/s Specific gravity of water at above conditions: 0.86458 Specific gravity of scCO2 at above conditions: 0.5124 scCO2 droplets in water are similar in size to oil droplets Water droplets in scCO2 are similar in size as those found in oil. Penn State University | 3.7 Geothermal Energy Conversion Systems 46PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
