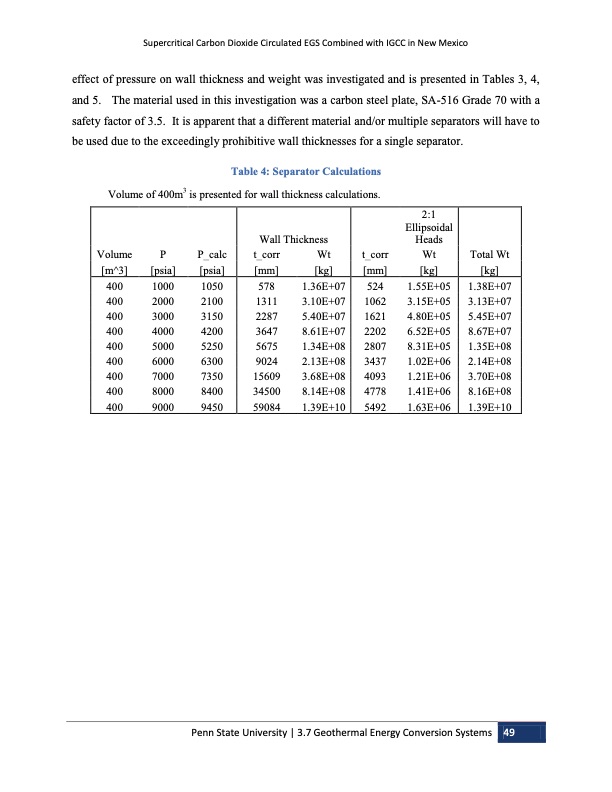

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico effect of pressure on wall thickness and weight was investigated and is presented in Tables 3, 4, and 5. The material used in this investigation was a carbon steel plate, SA-516 Grade 70 with a safety factor of 3.5. It is apparent that a different material and/or multiple separators will have to be used due to the exceedingly prohibitive wall thicknesses for a single separator. Table 4: Separator Calculations Volume of 400m3 is presented for wall thickness calculations. Wall Thickness Volume P P_calc t_corr Wt t_corr [m^3] [psia] [psia] [mm] [kg] [mm] 2:1 Ellipsoidal Heads Wt [kg] 1.55E+05 3.15E+05 4.80E+05 6.52E+05 8.31E+05 1.02E+06 1.21E+06 1.41E+06 1.63E+06 Total Wt [kg] 1.38E+07 3.13E+07 5.45E+07 8.67E+07 1.35E+08 2.14E+08 3.70E+08 8.16E+08 1.39E+10 400 1000 1050 578 400 2000 2100 1311 400 3000 3150 2287 400 4000 4200 3647 400 5000 5250 5675 400 6000 6300 9024 400 7000 7350 15609 400 8000 8400 34500 400 9000 9450 59084 1.36E+07 3.10E+07 5.40E+07 8.61E+07 1.34E+08 2.13E+08 3.68E+08 8.14E+08 1.39E+10 524 1062 1621 2202 2807 3437 4093 4778 5492 Penn State University | 3.7 Geothermal Energy Conversion Systems 49PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
