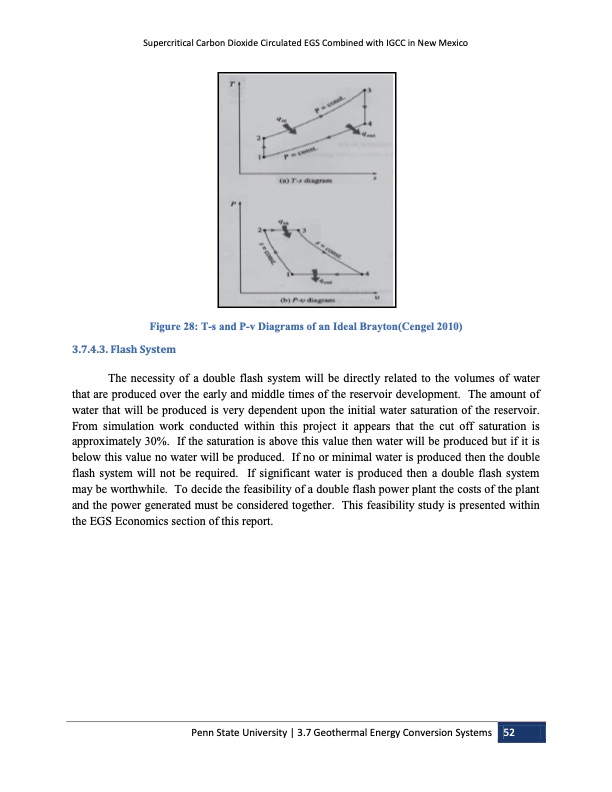

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico Figure 28: T-s and P-v Diagrams of an Ideal Brayton(Cengel 2010) 3.7.4.3. Flash System The necessity of a double flash system will be directly related to the volumes of water that are produced over the early and middle times of the reservoir development. The amount of water that will be produced is very dependent upon the initial water saturation of the reservoir. From simulation work conducted within this project it appears that the cut off saturation is approximately 30%. If the saturation is above this value then water will be produced but if it is below this value no water will be produced. If no or minimal water is produced then the double flash system will not be required. If significant water is produced then a double flash system may be worthwhile. To decide the feasibility of a double flash power plant the costs of the plant and the power generated must be considered together. This feasibility study is presented within the EGS Economics section of this report. Penn State University | 3.7 Geothermal Energy Conversion Systems 52PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
