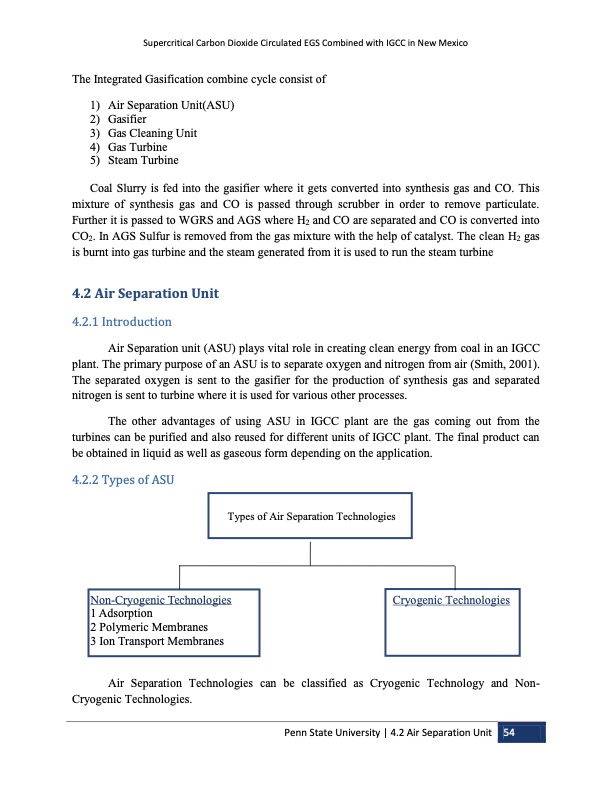

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico The Integrated Gasification combine cycle consist of 1) Air Separation Unit(ASU) 2) Gasifier 3) Gas Cleaning Unit 4) Gas Turbine 5) Steam Turbine Coal Slurry is fed into the gasifier where it gets converted into synthesis gas and CO. This mixture of synthesis gas and CO is passed through scrubber in order to remove particulate. Further it is passed to WGRS and AGS where H2 and CO are separated and CO is converted into CO2. In AGS Sulfur is removed from the gas mixture with the help of catalyst. The clean H2 gas is burnt into gas turbine and the steam generated from it is used to run the steam turbine 4.2 Air Separation Unit 4.2.1 Introduction Air Separation unit (ASU) plays vital role in creating clean energy from coal in an IGCC plant. The primary purpose of an ASU is to separate oxygen and nitrogen from air (Smith, 2001). The separated oxygen is sent to the gasifier for the production of synthesis gas and separated nitrogen is sent to turbine where it is used for various other processes. The other advantages of using ASU in IGCC plant are the gas coming out from the turbines can be purified and also reused for different units of IGCC plant. The final product can be obtained in liquid as well as gaseous form depending on the application. 4.2.2 Types of ASU Types of Air Separation Technologies Non-Cryogenic Technologies 1 Adsorption 2 Polymeric Membranes 3 Ion Transport Membranes Air Separation Technologies can be classified as Cryogenic Technology and Non- Cryogenic Technologies. Cryogenic Technologies Penn State University | 4.2 Air Separation Unit 54PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
