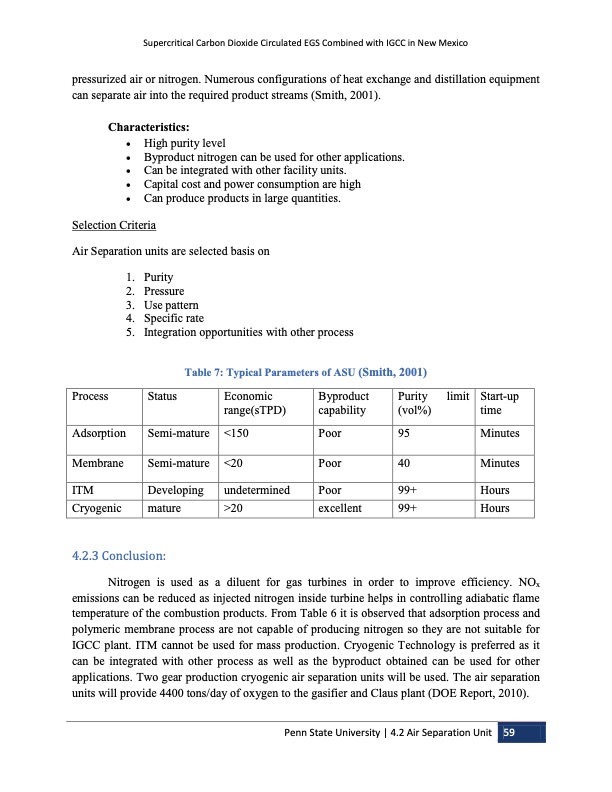

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico pressurized air or nitrogen. Numerous configurations of heat exchange and distillation equipment can separate air into the required product streams (Smith, 2001). Characteristics: High purity level Byproduct nitrogen can be used for other applications. Can be integrated with other facility units. Capital cost and power consumption are high Can produce products in large quantities. Selection Criteria Air Separation units are selected basis on Process Adsorption Membrane ITM Cryogenic 1. Purity 2. Pressure 3. Use pattern 4. Specific rate 5. Integration opportunities with other process Table 7: Typical Parameters of ASU (Smith, 2001) Status Economic Byproduct Purity range(sTPD) capability (vol%) Semi-mature <150 Poor 95 Semi-mature <20 Poor 40 Developing undetermined Poor 99+ mature >20 excellent 99+ limit Start-up time Minutes Minutes Hours Hours 4.2.3 Conclusion: Nitrogen is used as a diluent for gas turbines in order to improve efficiency. NOx emissions can be reduced as injected nitrogen inside turbine helps in controlling adiabatic flame temperature of the combustion products. From Table 6 it is observed that adsorption process and polymeric membrane process are not capable of producing nitrogen so they are not suitable for IGCC plant. ITM cannot be used for mass production. Cryogenic Technology is preferred as it can be integrated with other process as well as the byproduct obtained can be used for other applications. Two gear production cryogenic air separation units will be used. The air separation units will provide 4400 tons/day of oxygen to the gasifier and Claus plant (DOE Report, 2010). Penn State University | 4.2 Air Separation Unit 59PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
