Text from PDF Page: 094

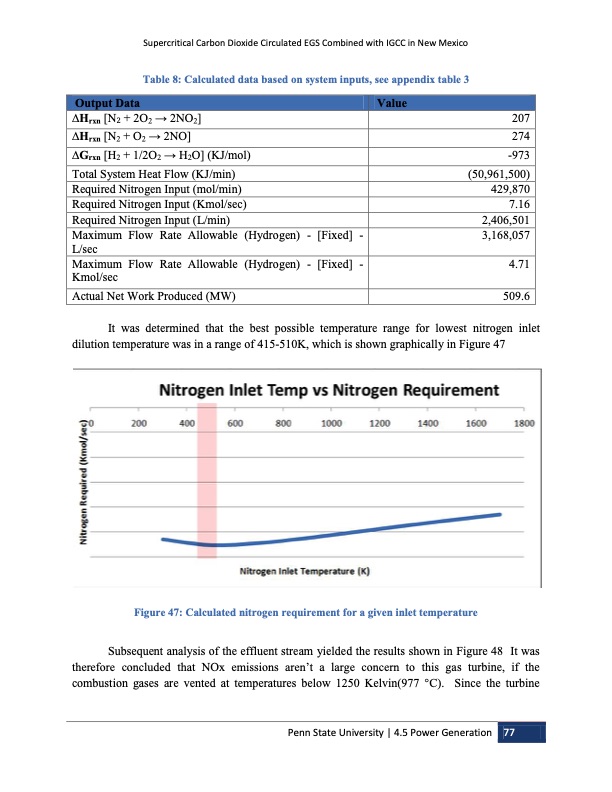

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico Table 8: Calculated data based on system inputs, see appendix table 3 ∆Hrxn [N2 + 2O2 → 2NO2] 207 ∆Hrxn [N2 + O2 → 2NO] 274 ∆Grxn [H2 + 1/2O2 → H2O] (KJ/mol) -973 Total System Heat Flow (KJ/min) (50,961,500) Required Nitrogen Input (mol/min) 429,870 Required Nitrogen Input (Kmol/sec) 7.16 Required Nitrogen Input (L/min) 2,406,501 Maximum Flow Rate Allowable (Hydrogen) - [Fixed] - 3,168,057 L/sec Maximum Flow Rate Allowable (Hydrogen) - [Fixed] - 4.71 Kmol/sec Actual Net Work Produced (MW) 509.6 It was determined that the best possible temperature range for lowest nitrogen inlet dilution temperature was in a range of 415-510K, which is shown graphically in Figure 47 Figure 47: Calculated nitrogen requirement for a given inlet temperature Subsequent analysis of the effluent stream yielded the results shown in Figure 48 It was therefore concluded that NOx emissions aren‘t a large concern to this gas turbine, if the combustion gases are vented at temperatures below 1250 Kelvin(977 °C). Since the turbine Output Data Value Penn State University | 4.5 Power Generation 77PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
