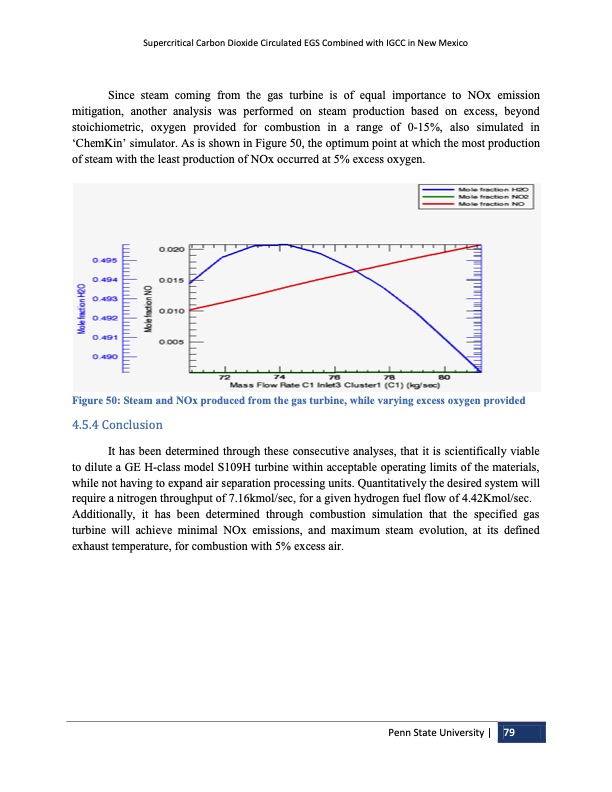

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico Since steam coming from the gas turbine is of equal importance to NOx emission mitigation, another analysis was performed on steam production based on excess, beyond stoichiometric, oxygen provided for combustion in a range of 0-15%, also simulated in ̳ChemKin‘ simulator. As is shown in Figure 50, the optimum point at which the most production of steam with the least production of NOx occurred at 5% excess oxygen. Figure 50: Steam and NOx produced from the gas turbine, while varying excess oxygen provided 4.5.4 Conclusion It has been determined through these consecutive analyses, that it is scientifically viable to dilute a GE H-class model S109H turbine within acceptable operating limits of the materials, while not having to expand air separation processing units. Quantitatively the desired system will require a nitrogen throughput of 7.16kmol/sec, for a given hydrogen fuel flow of 4.42Kmol/sec. Additionally, it has been determined through combustion simulation that the specified gas turbine will achieve minimal NOx emissions, and maximum steam evolution, at its defined exhaust temperature, for combustion with 5% excess air. Penn State University | 79PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
