PDF Publication Title:
Text from PDF Page: 097

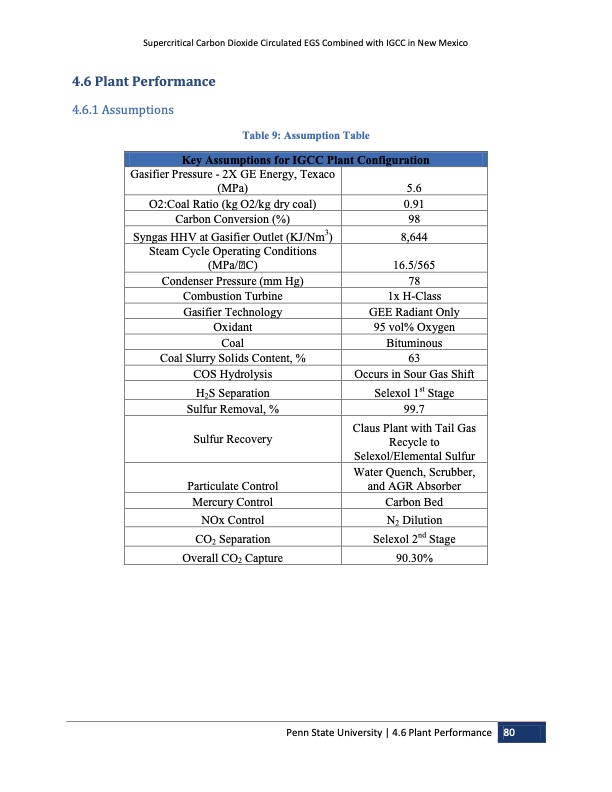

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico 4.6 Plant Performance 4.6.1 Assumptions Table 9: Assumption Table Key Assumptions for IGCC Plant Configuration Gasifier Pressure - 2X GE Energy, Texaco (MPa) O2:Coal Ratio (kg O2/kg dry coal) Carbon Conversion (%) Syngas HHV at Gasifier Outlet (KJ/Nm3) Steam Cycle Operating Conditions (MPa/oC) Condenser Pressure (mm Hg) Combustion Turbine Gasifier Technology Oxidant Coal Coal Slurry Solids Content, % COS Hydrolysis H2S Separation Sulfur Removal, % Particulate Control Mercury Control NOx Control CO2 Separation Overall CO2 Capture 5.6 0.91 98 8,644 16.5/565 78 1x H-Class GEE Radiant Only 95 vol% Oxygen Bituminous 63 Occurs in Sour Gas Shift Selexol 1st Stage 99.7 Water Quench, Scrubber, and AGR Absorber Carbon Bed N2 Dilution Selexol 2nd Stage 90.30% Sulfur Recovery Claus Plant with Tail Gas Recycle to Selexol/Elemental Sulfur Penn State University | 4.6 Plant Performance 80PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
