PDF Publication Title:
Text from PDF Page: 101

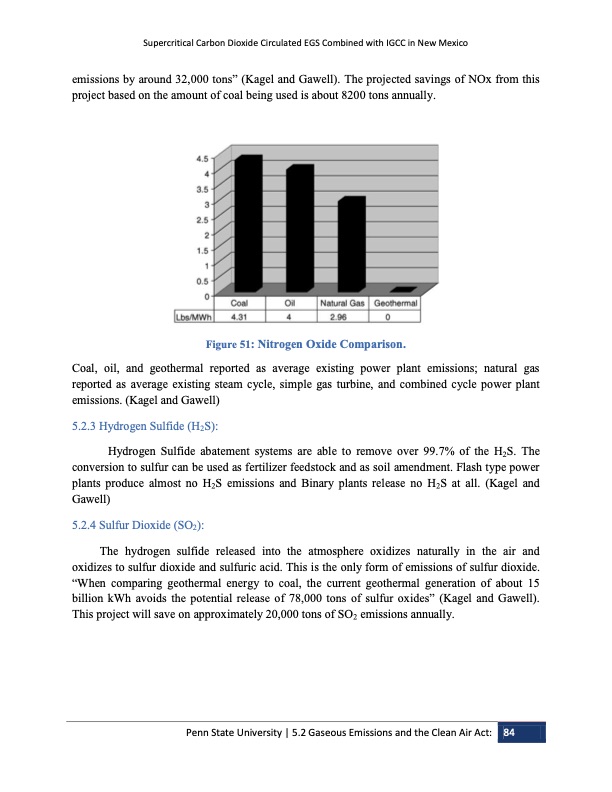

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico emissions by around 32,000 tons‖ (Kagel and Gawell). The projected savings of NOx from this project based on the amount of coal being used is about 8200 tons annually. Figure 51: Nitrogen Oxide Comparison. Coal, oil, and geothermal reported as average existing power plant emissions; natural gas reported as average existing steam cycle, simple gas turbine, and combined cycle power plant emissions. (Kagel and Gawell) 5.2.3 Hydrogen Sulfide (H2S): Hydrogen Sulfide abatement systems are able to remove over 99.7% of the H2S. The conversion to sulfur can be used as fertilizer feedstock and as soil amendment. Flash type power plants produce almost no H2S emissions and Binary plants release no H2S at all. (Kagel and Gawell) 5.2.4 Sulfur Dioxide (SO2): The hydrogen sulfide released into the atmosphere oxidizes naturally in the air and oxidizes to sulfur dioxide and sulfuric acid. This is the only form of emissions of sulfur dioxide. ―When comparing geothermal energy to coal, the current geothermal generation of about 15 billion kWh avoids the potential release of 78,000 tons of sulfur oxides‖ (Kagel and Gawell). This project will save on approximately 20,000 tons of SO2 emissions annually. Penn State University | 5.2 Gaseous Emissions and the Clean Air Act: 84PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
