PDF Publication Title:
Text from PDF Page: 110

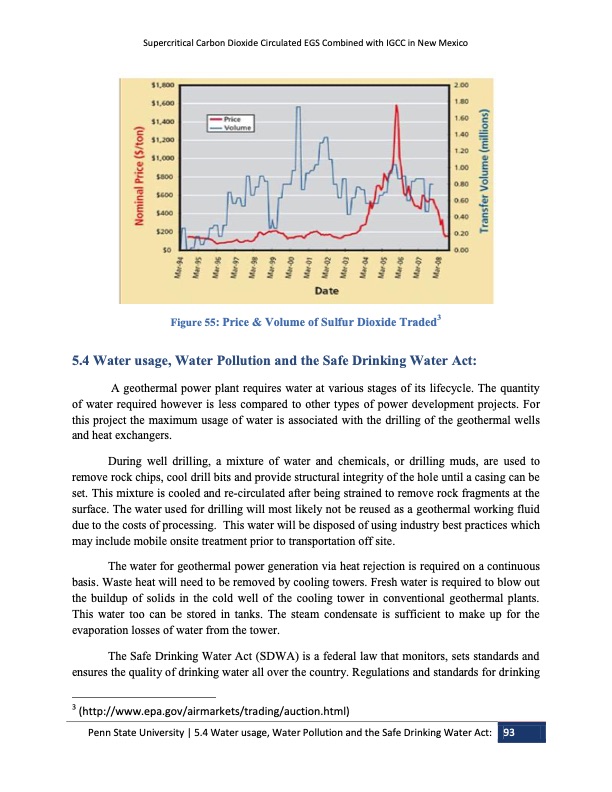

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico Figure 55: Price & Volume of Sulfur Dioxide Traded3 5.4 Water usage, Water Pollution and the Safe Drinking Water Act: A geothermal power plant requires water at various stages of its lifecycle. The quantity of water required however is less compared to other types of power development projects. For this project the maximum usage of water is associated with the drilling of the geothermal wells and heat exchangers. During well drilling, a mixture of water and chemicals, or drilling muds, are used to remove rock chips, cool drill bits and provide structural integrity of the hole until a casing can be set. This mixture is cooled and re-circulated after being strained to remove rock fragments at the surface. The water used for drilling will most likely not be reused as a geothermal working fluid due to the costs of processing. This water will be disposed of using industry best practices which may include mobile onsite treatment prior to transportation off site. The water for geothermal power generation via heat rejection is required on a continuous basis. Waste heat will need to be removed by cooling towers. Fresh water is required to blow out the buildup of solids in the cold well of the cooling tower in conventional geothermal plants. This water too can be stored in tanks. The steam condensate is sufficient to make up for the evaporation losses of water from the tower. The Safe Drinking Water Act (SDWA) is a federal law that monitors, sets standards and ensures the quality of drinking water all over the country. Regulations and standards for drinking 3 (http://www.epa.gov/airmarkets/trading/auction.html) Penn State University | 5.4 Water usage, Water Pollution and the Safe Drinking Water Act: 93PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
