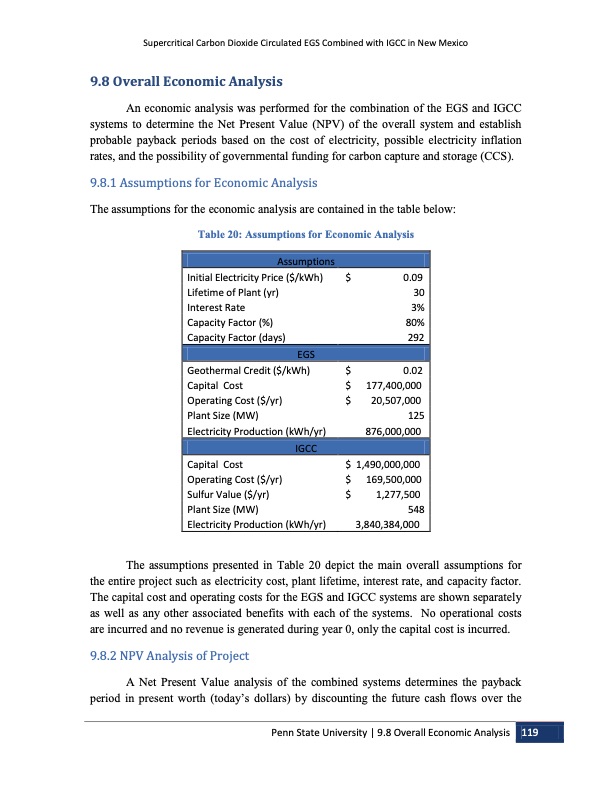

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico 9.8 Overall Economic Analysis An economic analysis was performed for the combination of the EGS and IGCC systems to determine the Net Present Value (NPV) of the overall system and establish probable payback periods based on the cost of electricity, possible electricity inflation rates, and the possibility of governmental funding for carbon capture and storage (CCS). 9.8.1 Assumptions for Economic Analysis The assumptions for the economic analysis are contained in the table below: Table 20: Assumptions for Economic Analysis Assumptions Initial Electricity Price ($/kWh) Lifetime of Plant (yr) Interest Rate Capacity Factor (%) Capacity Factor (days) EGS Geothermal Credit ($/kWh) Capital Cost Operating Cost ($/yr) Plant Size (MW) Electricity Production (kWh/yr) IGCC Capital Cost Operating Cost ($/yr) Sulfur Value ($/yr) Plant Size (MW) Electricity Production (kWh/yr) $ 0.09 30 3% 80% 292 $ 0.02 $ 177,400,000 $ 20,507,000 125 876,000,000 1,490,000,000 $ $ 169,500,000 $ 1,277,500 548 3,840,384,000 The assumptions presented in Table 20 depict the main overall assumptions for the entire project such as electricity cost, plant lifetime, interest rate, and capacity factor. The capital cost and operating costs for the EGS and IGCC systems are shown separately as well as any other associated benefits with each of the systems. No operational costs are incurred and no revenue is generated during year 0, only the capital cost is incurred. 9.8.2 NPV Analysis of Project A Net Present Value analysis of the combined systems determines the payback period in present worth (today‘s dollars) by discounting the future cash flows over the Penn State University | 9.8 Overall Economic Analysis 119PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
