PDF Publication Title:
Text from PDF Page: 137

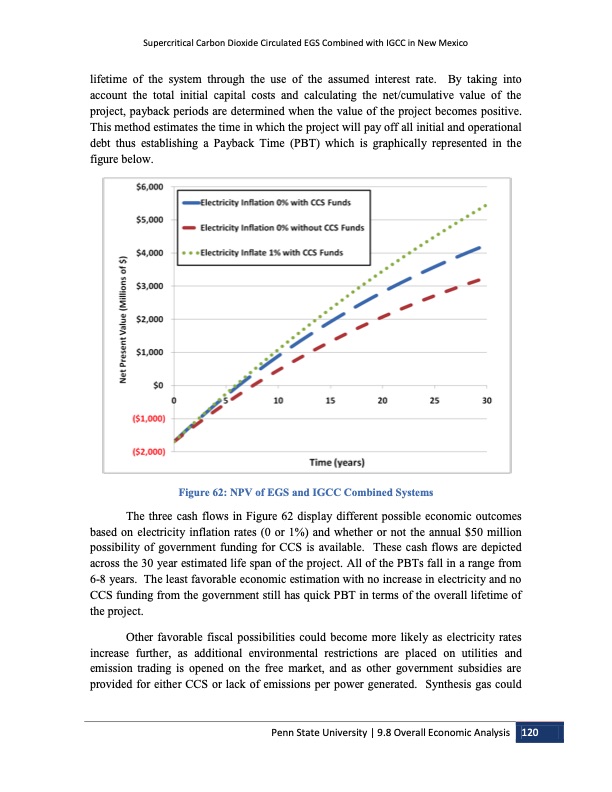

Supercritical Carbon Dioxide Circulated EGS Combined with IGCC in New Mexico lifetime of the system through the use of the assumed interest rate. By taking into account the total initial capital costs and calculating the net/cumulative value of the project, payback periods are determined when the value of the project becomes positive. This method estimates the time in which the project will pay off all initial and operational debt thus establishing a Payback Time (PBT) which is graphically represented in the figure below. Figure 62: NPV of EGS and IGCC Combined Systems The three cash flows in Figure 62 display different possible economic outcomes based on electricity inflation rates (0 or 1%) and whether or not the annual $50 million possibility of government funding for CCS is available. These cash flows are depicted across the 30 year estimated life span of the project. All of the PBTs fall in a range from 6-8 years. The least favorable economic estimation with no increase in electricity and no CCS funding from the government still has quick PBT in terms of the overall lifetime of the project. Other favorable fiscal possibilities could become more likely as electricity rates increase further, as additional environmental restrictions are placed on utilities and emission trading is opened on the free market, and as other government subsidies are provided for either CCS or lack of emissions per power generated. Synthesis gas could Penn State University | 9.8 Overall Economic Analysis 120PDF Image | GREAT NECK WATER POLLUTION CONTROL DISTRICT NASSAU COUNTY, NEW YORK MICROTURBINE INSTALLATION FEASIBILITY STUDY
