PDF Publication Title:
Text from PDF Page: 101

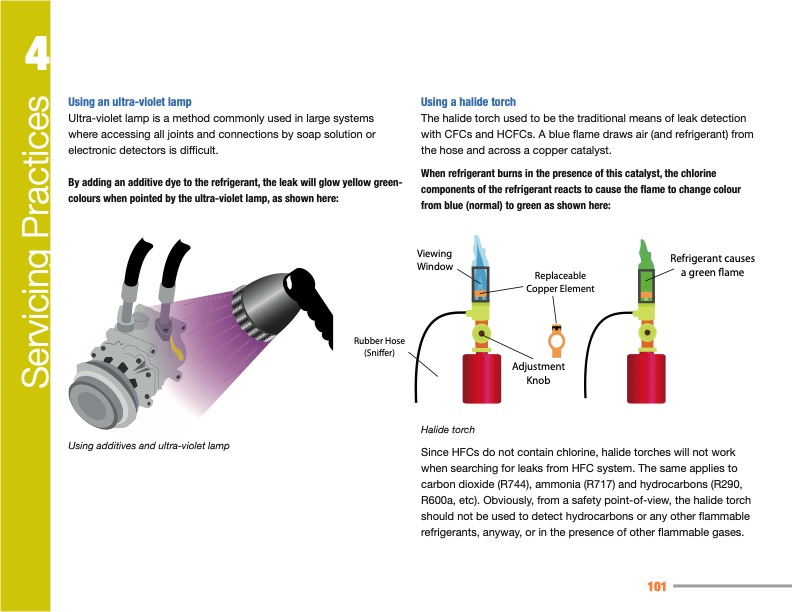

4 CHAPITRE 4 PAGE 14 CHAPCITHRAEP4ITRE4 PAGEP1A3GE13 Using an ultra-violet lamp HALIDHEATLOIDRECHTORCH Ultra-violet lamp is a method commonly used in large systems where accessing all joints and connections by soap solution or electronic detectors is difficult. By adding an additive dye to the refrigerant, the leak will glow yellow green- colours when pointed by the ultra-violet lamp, as shown here: Using a halide torch The halide torch used to be the traditional means of leak detection with CFCs and HCFCs. A blue flame draws air (and refrigerant) from the hose and across a copper catalyst. When refrigerant burns in the presence of this catalyst, the chlorine components of the refrigerant reacts to cause the flame to change colour from blue (normal) to green as shown here: ViewiVnigewing WindoWwindow ReplaRceapblaleceable CoppeCroEplpeemreEnletment AdjusAtmdjeunstment KnobKnob RefrigRerfaringtecraunstecsauses agreaengrfleaemneflame Using additives and ultra-violet lamp Since HFCs do not contain chlorine, halide torches will not work when searching for leaks from HFC system. The same applies to carbon dioxide (R744), ammonia (R717) and hydrocarbons (R290, R600a, etc). Obviously, from a safety point-of-view, the halide torch RubbeRruHbobser Hose (Sniffe(rS)niffer) DDOONNEE Halide torch should not be used to detect hydrocarbons or any other flammable refrigerants, anyway, or in the presence of other flammable gases. 101 Servicing PracticesPDF Image | Manual for Refrigeration Servicing Technicians
PDF Search Title:
Manual for Refrigeration Servicing TechniciansOriginal File Name Searched:
Refrigeration_Servicing.pdfDIY PDF Search: Google It | Yahoo | Bing
