Text from PDF Page: 105

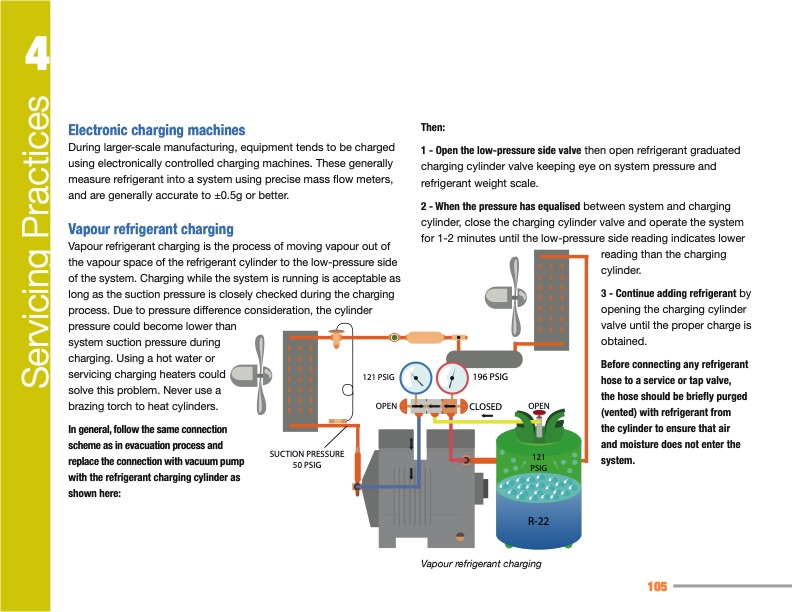

CHAPITRE 4 4 PAGE 18 VAPOUR REFRIGIRENT CHARGING Electronic charging machines Then: 1 - Open the low-pressure side valve then open refrigerant graduated charging cylinder valve keeping eye on system pressure and refrigerant weight scale. 2 - When the pressure has equalised between system and charging cylinder, close the charging cylinder valve and operate the system for 1-2 minutes until the low-pressure side reading indicates lower During larger-scale manufacturing, equipment tends to be charged using electronically controlled charging machines. These generally measure refrigerant into a system using precise mass flow meters, and are generally accurate to ±0.5g or better. Vapour refrigerant charging Vapour refrigerant charging is the process of moving vapour out of the vapour space of the refrigerant cylinder to the low-pressure side of the system. Charging while the system is running is acceptable as long as the suction pressure is closely checked during the charging process. Due to pressure difference consideration, the cylinder pressure could become lower than reading than the charging cylinder. 3 - Continue adding refrigerant by opening the charging cylinder valve until the proper charge is obtained. Before connecting any refrigerant hose to a service or tap valve, the hose should be briefly purged (vented) with refrigerant from the cylinder to ensure that air and moisture does not enter the system. system suction pressure during charging. Using a hot water or servicing charging heaters could solve this problem. Never use a brazing torch to heat cylinders. In general, follow the same connection scheme as in evacuation process and replace the connection with vacuum pump with the refrigerant charging cylinder as shown here: 121 PSIG OPEN 196 PSIG CLOSED OPEN 121 PSIG SUCTION PRESSURE 50 PSIG Vapour refrigerant charging R-22 105 Servicing PracticesPDF Image | Manual for Refrigeration Servicing Technicians
