PDF Publication Title:

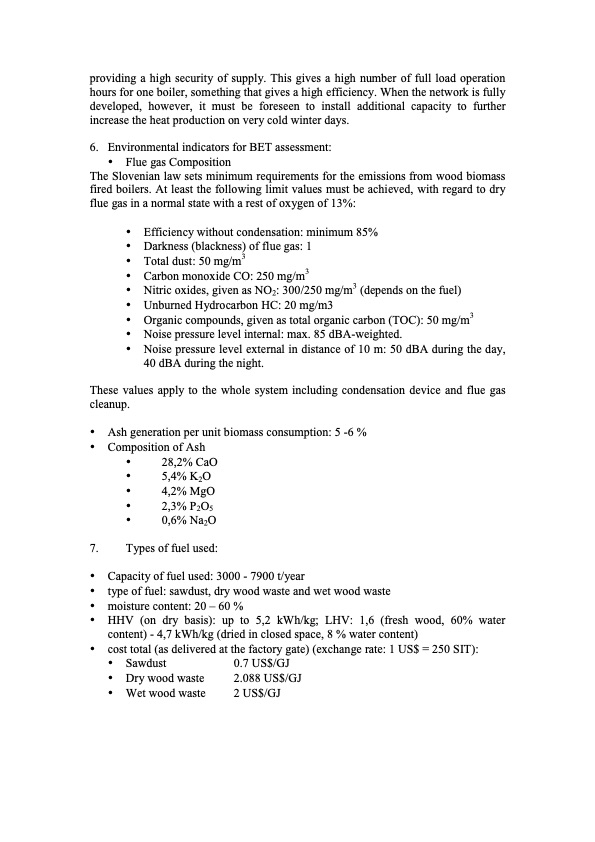

Text from PDF Page: 022
providing a high security of supply. This gives a high number of full load operation hours for one boiler, something that gives a high efficiency. When the network is fully developed, however, it must be foreseen to install additional capacity to further increase the heat production on very cold winter days. 6. Environmental indicators for BET assessment: • Flue gas Composition The Slovenian law sets minimum requirements for the emissions from wood biomass fired boilers. At least the following limit values must be achieved, with regard to dry flue gas in a normal state with a rest of oxygen of 13%: • Efficiency without condensation: minimum 85% • Darkness (blackness) of flue gas: 1 • Total dust: 50 mg/m3 • Carbon monoxide CO: 250 mg/m3 • Nitric oxides, given as NO2: 300/250 mg/m3 (depends on the fuel) • Unburned Hydrocarbon HC: 20 mg/m3 3 • Organic compounds, given as total organic carbon (TOC): 50 mg/m • Noise pressure level internal: max. 85 dBA-weighted. • Noise pressure level external in distance of 10 m: 50 dBA during the day, 40 dBA during the night. These values apply to the whole system including condensation device and flue gas cleanup. • Ash generation per unit biomass consumption: 5 -6 % • Composition of Ash • 28,2% CaO • 5,4% K2O • 4,2% MgO • 2,3% P2O5 • 0,6% Na2O 7. Types of fuel used: • Capacity of fuel used: 3000 - 7900 t/year • type of fuel: sawdust, dry wood waste and wet wood waste • moisture content: 20 – 60 % • HHV (on dry basis): up to 5,2 kWh/kg; LHV: 1,6 (fresh wood, 60% water content) - 4,7 kWh/kg (dried in closed space, 8 % water content) • cost total (as delivered at the factory gate) (exchange rate: 1 US$ = 250 SIT): • Sawdust • Dry wood waste • Wet wood waste 0.7 US$/GJ 2.088 US$/GJ 2 US$/GJPDF Image | Organisations in Different Renewables
