Text from PDF Page: 024

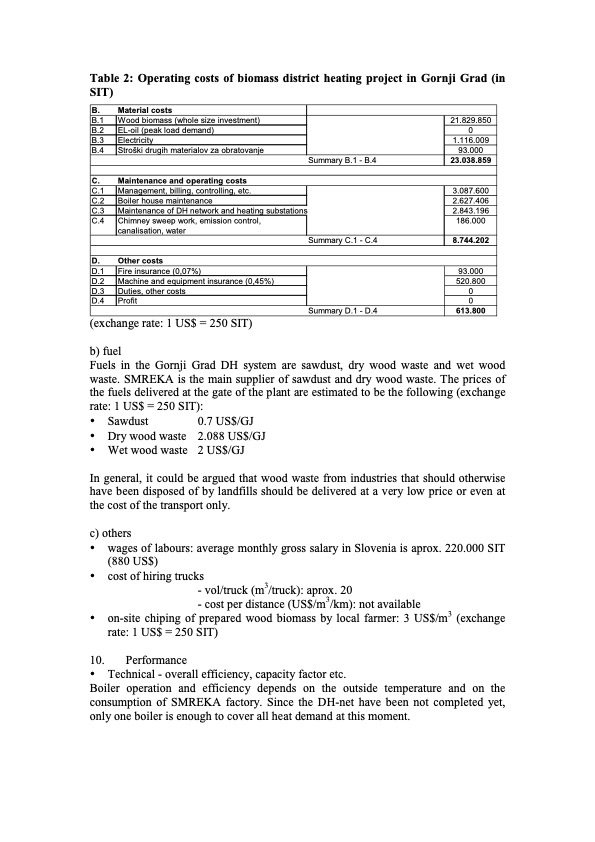

Table 2: Operating costs of biomass district heating project in Gornji Grad (in SIT) B. Material costs B.1 Wood biomass (whole size investment) 21.829.850 B.2 EL-oil (peak load demand) 0 B.3 Electricity 1.116.009 B.4 Stroški drugih materialov za obratovanje 93.000 Summary B.1 - B.4 23.038.859 C. Maintenance and operating costs C.1 Management, billing, controlling, etc. Boiler house maintenance Maintenance of DH network and heating substations Chimney sweep work, emission control, canalisation, water 3.087.600 C.2 2.627.406 C.3 2.843.196 C.4 186.000 Summary C.1 - C.4 8.744.202 D. Other costs D.1 Fire insurance (0,07%) D.2 Machine and equipment insurance (0,45%) D.3 Duties, other costs D.4 Profit 93.000 520.800 0 0 Summary D.1 - D.4 613.800 (exchange rate: 1 US$ = 250 SIT) b) fuel Fuels in the Gornji Grad DH system are sawdust, dry wood waste and wet wood waste. SMREKA is the main supplier of sawdust and dry wood waste. The prices of the fuels delivered at the gate of the plant are estimated to be the following (exchange rate: 1 US$ = 250 SIT): • Sawdust • Dry wood waste • Wet wood waste 0.7 US$/GJ 2.088 US$/GJ 2 US$/GJ In general, it could be argued that wood waste from industries that should otherwise have been disposed of by landfills should be delivered at a very low price or even at the cost of the transport only. c) others • wages of labours: average monthly gross salary in Slovenia is aprox. 220.000 SIT (880 US$) • cost of hiring trucks 3 - vol/truck (m /truck): aprox. 20 - cost per distance (US$/m3/km): not available • on-site chiping of prepared wood biomass by local farmer: 3 US$/m3 (exchange rate: 1 US$ = 250 SIT) 10. Performance • Technical - overall efficiency, capacity factor etc. Boiler operation and efficiency depends on the outside temperature and on the consumption of SMREKA factory. Since the DH-net have been not completed yet, only one boiler is enough to cover all heat demand at this moment.PDF Image | Organisations in Different Renewables
