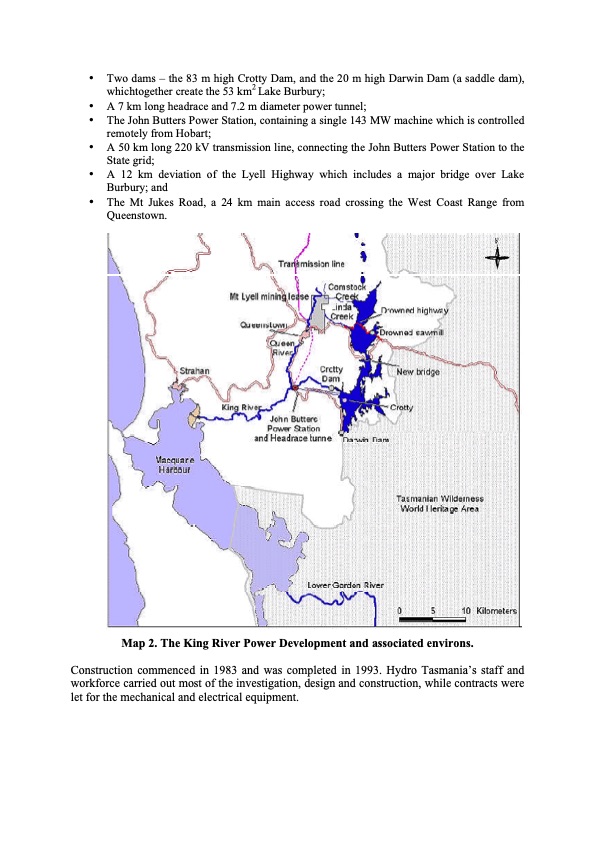

• Two dams – the 83 m high Crotty Dam, and the 20 m high Darwin Dam (a saddle dam), whichtogether create the 53 km2 Lake Burbury; • A 7 km long headrace and 7.2 m diameter power tunnel; • The John Butters Power Station, containing a single 143 MW machine which is controlled remotely from Hobart; • A 50 km long 220 kV transmission line, connecting the John Butters Power Station to the State grid; • A 12 km deviation of the Lyell Highway which includes a major bridge over Lake Burbury; and • The Mt Jukes Road, a 24 km main access road crossing the West Coast Range from Queenstown. Map 2. The King River Power Development and associated environs. Construction commenced in 1983 and was completed in 1993. Hydro Tasmania’s staff and workforce carried out most of the investigation, design and construction, while contracts were let for the mechanical and electrical equipment.PDF Image | Organisations in Different Renewables
