PDF Publication Title:

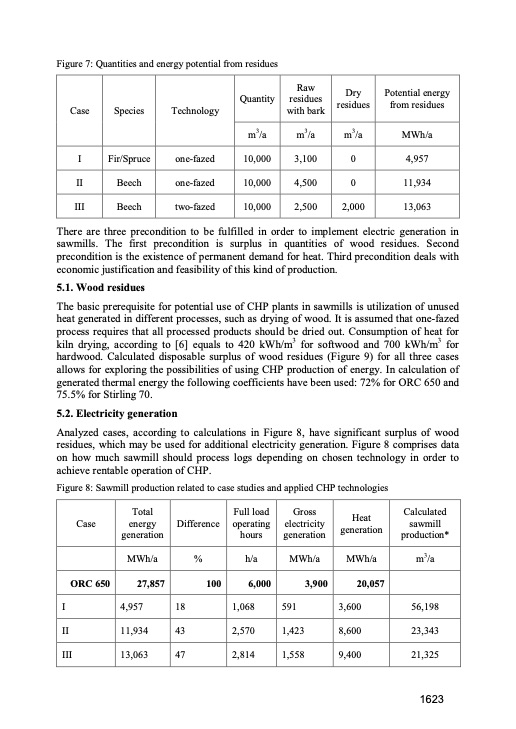

Text from PDF Page: 008
Figure 7: Quantities and energy potential from residues Quantity Raw residues with bark Dry residues Potential energy from residues Case I II III Species Fir/Spruce Beech Beech Technology one-fazed one-fazed two-fazed m3/a m3/a m3/a 10,000 3,100 0 10,000 4,500 0 10,000 2,500 2,000 MWh/a 4,957 11,934 13,063 There are three precondition to be fulfilled in order to implement electric generation in sawmills. The first precondition is surplus in quantities of wood residues. Second precondition is the existence of permanent demand for heat. Third precondition deals with economic justification and feasibility of this kind of production. 5.1. Wood residues The basic prerequisite for potential use of CHP plants in sawmills is utilization of unused heat generated in different processes, such as drying of wood. It is assumed that one-fazed process requires that all processed products should be dried out. Consumption of heat for kiln drying, according to [6] equals to 420 kWh/m3 for softwood and 700 kWh/m3 for hardwood. Calculated disposable surplus of wood residues (Figure 9) for all three cases allows for exploring the possibilities of using CHP production of energy. In calculation of generated thermal energy the following coefficients have been used: 72% for ORC 650 and 75.5% for Stirling 70. 5.2. Electricity generation Analyzed cases, according to calculations in Figure 8, have significant surplus of wood residues, which may be used for additional electricity generation. Figure 8 comprises data on how much sawmill should process logs depending on chosen technology in order to achieve rentable operation of CHP. Figure 8: Sawmill production related to case studies and applied CHP technologies Case Total energy generation Difference Full load operating hours Gross electricity generation Heat generation Calculated sawmill production* MWh/a ORC 650 27,857 % h/a MWh/a MWh/a m3/a 100 6,000 3,900 20,057 18 1,068 591 3,600 56,198 43 2,570 1,423 8,600 23,343 47 2,814 1,558 9,400 21,325 I II 11,934 III 13,063 4,957 1623PDF Image | POSSIBLE APPLICATION OF CHP IN THE WOOD INDUSTRY IN SERBIA
