PDF Publication Title:

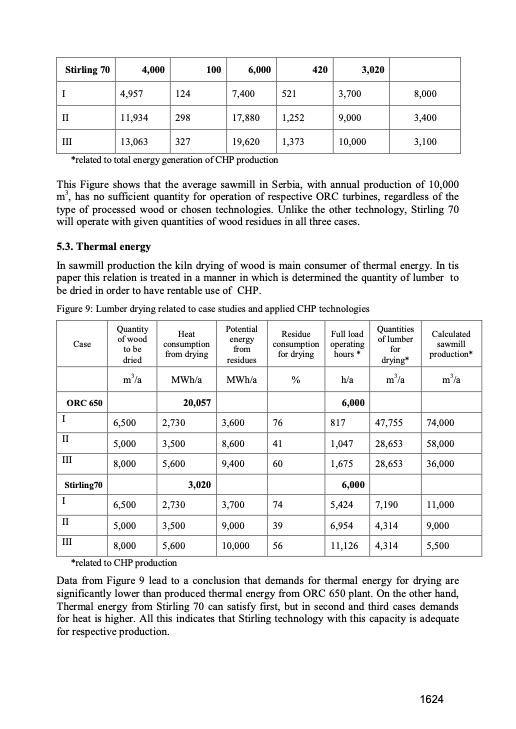

Text from PDF Page: 009
Stirling 70 4,000 100 6,000 420 3,020 I 4,957 II 11,934 7,400 521 17,880 1,252 19,620 1,373 This Figure shows that the average sawmill in Serbia, with annual production of 10,000 m3, has no sufficient quantity for operation of respective ORC turbines, regardless of the type of processed wood or chosen technologies. Unlike the other technology, Stirling 70 will operate with given quantities of wood residues in all three cases. 5.3. Thermal energy In sawmill production the kiln drying of wood is main consumer of thermal energy. In tis paper this relation is treated in a manner in which is determined the quantity of lumber to be dried in order to have rentable use of CHP. 124 298 327 3,700 8,000 9,000 3,400 10,000 3,100 III 13,063 *related to total energy generation of CHP production Figure 9: Lumber drying related to case studies and applied CHP technologies Case Quantity of wood to be dried Heat consumption from drying Potential energy from residues Residue consumption for drying Full load operating hours * Quantities of lumber for drying* Calculated sawmill production* m3/a 6,500 5,000 8,000 6,500 5,000 8,000 MWh/a MWh/a 20,057 2,730 3,500 5,600 2,730 3,500 5,600 % h/a m3/a 6,000 817 47,755 1,047 28,653 1,675 28,653 6,000 5,424 7,190 6,954 4,314 11,126 4,314 m3/a 74,000 58,000 36,000 11,000 9,000 5,500 ORC 650 I II III 3,600 8,600 9,400 3,700 9,000 10,000 76 41 60 74 39 56 Stirling70 3,020 I II III *related to CHP production Data from Figure 9 lead to a conclusion that demands for thermal energy for drying are significantly lower than produced thermal energy from ORC 650 plant. On the other hand, Thermal energy from Stirling 70 can satisfy first, but in second and third cases demands for heat is higher. All this indicates that Stirling technology with this capacity is adequate for respective production. 1624PDF Image | POSSIBLE APPLICATION OF CHP IN THE WOOD INDUSTRY IN SERBIA
PDF Search Title:
POSSIBLE APPLICATION OF CHP IN THE WOOD INDUSTRY IN SERBIAOriginal File Name Searched:
rad42w.pdfDIY PDF Search: Google It | Yahoo | Bing
