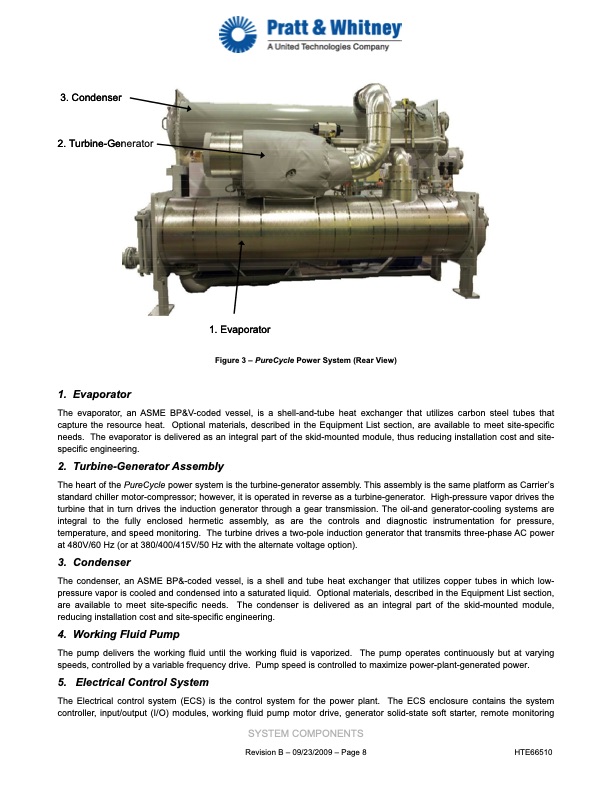

3. Condenser 2. Turbine-Generator 1. Evaporator 1. Evaporator Figure 3 – PureCycle Power System (Rear View) The evaporator, an ASME BP&V-coded vessel, is a shell-and-tube heat exchanger that utilizes carbon steel tubes that capture the resource heat. Optional materials, described in the Equipment List section, are available to meet site-specific needs. The evaporator is delivered as an integral part of the skid-mounted module, thus reducing installation cost and site- specific engineering. 2. Turbine-GeneratorAssembly The heart of the PureCycle power system is the turbine-generator assembly. This assembly is the same platform as Carrier’s standard chiller motor-compressor; however, it is operated in reverse as a turbine-generator. High-pressure vapor drives the turbine that in turn drives the induction generator through a gear transmission. The oil-and generator-cooling systems are integral to the fully enclosed hermetic assembly, as are the controls and diagnostic instrumentation for pressure, temperature, and speed monitoring. The turbine drives a two-pole induction generator that transmits three-phase AC power at 480V/60 Hz (or at 380/400/415V/50 Hz with the alternate voltage option). 3. Condenser The condenser, an ASME BP&-coded vessel, is a shell and tube heat exchanger that utilizes copper tubes in which low- pressure vapor is cooled and condensed into a saturated liquid. Optional materials, described in the Equipment List section, are available to meet site-specific needs. The condenser is delivered as an integral part of the skid-mounted module, reducing installation cost and site-specific engineering. 4. Working Fluid Pump The pump delivers the working fluid until the working fluid is vaporized. The pump operates continuously but at varying speeds, controlled by a variable frequency drive. Pump speed is controlled to maximize power-plant-generated power. 5. Electrical Control System The Electrical control system (ECS) is the control system for the power plant. The ECS enclosure contains the system controller, input/output (I/O) modules, working fluid pump motor drive, generator solid-state soft starter, remote monitoring SYSTEM COMPONENTS Revision B – 09/23/2009 – Page 8 HTE66510PDF Image | PURECYCLE POWER SYSTEM MODEL 280 Application Guide
