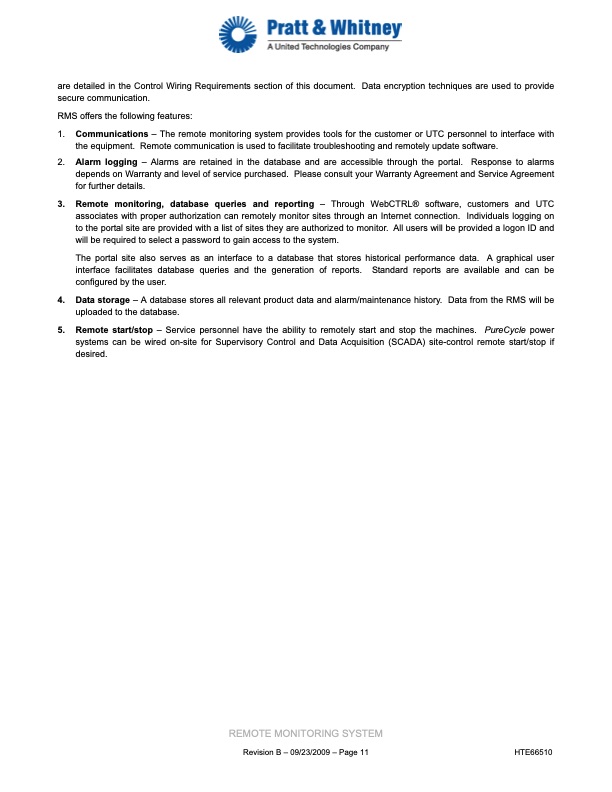

are detailed in the Control Wiring Requirements section of this document. Data encryption techniques are used to provide secure communication. RMS offers the following features: 1. Communications – The remote monitoring system provides tools for the customer or UTC personnel to interface with the equipment. Remote communication is used to facilitate troubleshooting and remotely update software. 2. Alarm logging – Alarms are retained in the database and are accessible through the portal. Response to alarms depends on Warranty and level of service purchased. Please consult your Warranty Agreement and Service Agreement for further details. 3. Remote monitoring, database queries and reporting – Through WebCTRL® software, customers and UTC associates with proper authorization can remotely monitor sites through an Internet connection. Individuals logging on to the portal site are provided with a list of sites they are authorized to monitor. All users will be provided a logon ID and will be required to select a password to gain access to the system. The portal site also serves as an interface to a database that stores historical performance data. A graphical user interface facilitates database queries and the generation of reports. Standard reports are available and can be configured by the user. 4. Data storage – A database stores all relevant product data and alarm/maintenance history. Data from the RMS will be uploaded to the database. 5. Remote start/stop – Service personnel have the ability to remotely start and stop the machines. PureCycle power systems can be wired on-site for Supervisory Control and Data Acquisition (SCADA) site-control remote start/stop if desired. REMOTE MONITORING SYSTEM Revision B – 09/23/2009 – Page 11 HTE66510PDF Image | PURECYCLE POWER SYSTEM MODEL 280 Application Guide
