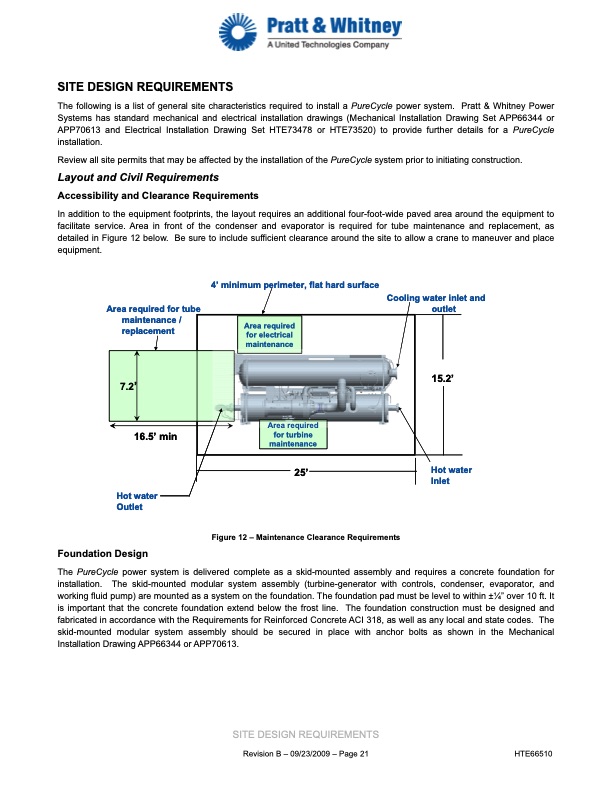

SITE DESIGN REQUIREMENTS The following is a list of general site characteristics required to install a PureCycle power system. Pratt & Whitney Power Systems has standard mechanical and electrical installation drawings (Mechanical Installation Drawing Set APP66344 or APP70613 and Electrical Installation Drawing Set HTE73478 or HTE73520) to provide further details for a PureCycle installation. Review all site permits that may be affected by the installation of the PureCycle system prior to initiating construction. Layout and Civil Requirements Accessibility and Clearance Requirements In addition to the equipment footprints, the layout requires an additional four-foot-wide paved area around the equipment to facilitate service. Area in front of the condenser and evaporator is required for tube maintenance and replacement, as detailed in Figure 12 below. Be sure to include sufficient clearance around the site to allow a crane to maneuver and place equipment. 4’ minimum perimeter, flat hard surface Area required for tube maintenance / replacement 7.2’ 16.5’ min Hot water Outlet Foundation Design Cooling water inlet and outlet 15.2’ Hot water Inlet Area required for electrical maintenance Area required for turbine maintenance 25’ Figure 12 – Maintenance Clearance Requirements The PureCycle power system is delivered complete as a skid-mounted assembly and requires a concrete foundation for installation. The skid-mounted modular system assembly (turbine-generator with controls, condenser, evaporator, and working fluid pump) are mounted as a system on the foundation. The foundation pad must be level to within ±1⁄4” over 10 ft. It is important that the concrete foundation extend below the frost line. The foundation construction must be designed and fabricated in accordance with the Requirements for Reinforced Concrete ACI 318, as well as any local and state codes. The skid-mounted modular system assembly should be secured in place with anchor bolts as shown in the Mechanical Installation Drawing APP66344 or APP70613. SITE DESIGN REQUIREMENTS Revision B – 09/23/2009 – Page 21 HTE66510PDF Image | PURECYCLE POWER SYSTEM MODEL 280 Application Guide
