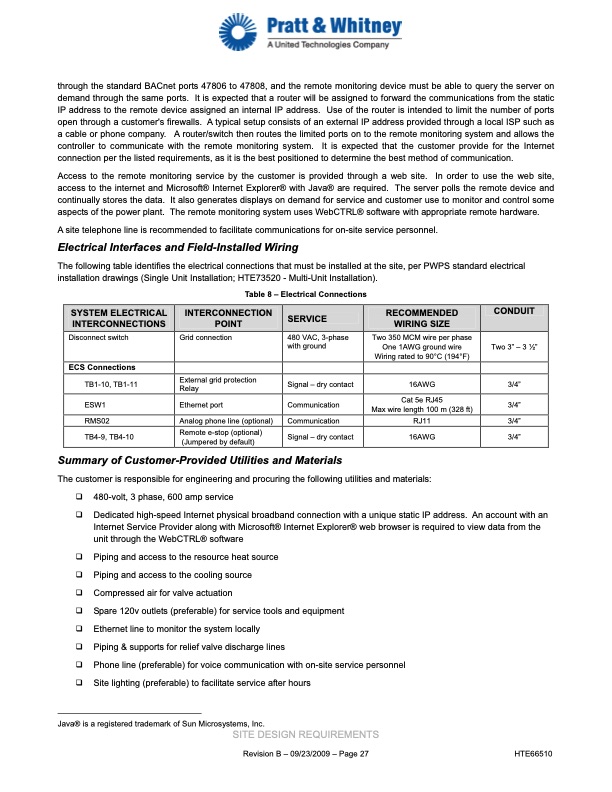

through the standard BACnet ports 47806 to 47808, and the remote monitoring device must be able to query the server on demand through the same ports. It is expected that a router will be assigned to forward the communications from the static IP address to the remote device assigned an internal IP address. Use of the router is intended to limit the number of ports open through a customer's firewalls. A typical setup consists of an external IP address provided through a local ISP such as a cable or phone company. A router/switch then routes the limited ports on to the remote monitoring system and allows the controller to communicate with the remote monitoring system. It is expected that the customer provide for the Internet connection per the listed requirements, as it is the best positioned to determine the best method of communication. Access to the remote monitoring service by the customer is provided through a web site. In order to use the web site, access to the internet and Microsoft® Internet Explorer® with Java® are required. The server polls the remote device and continually stores the data. It also generates displays on demand for service and customer use to monitor and control some aspects of the power plant. The remote monitoring system uses WebCTRL® software with appropriate remote hardware. A site telephone line is recommended to facilitate communications for on-site service personnel. Electrical Interfaces and Field-Installed Wiring The following table identifies the electrical connections that must be installed at the site, per PWPS standard electrical installation drawings (Single Unit Installation; HTE73520 - Multi-Unit Installation). SYSTEM ELECTRICAL INTERCONNECTIONS INTERCONNECTION POINT SERVICE RECOMMENDED WIRING SIZE CONDUIT Disconnect switch ECS Connections TB1-10, TB1-11 ESW1 RMS02 TB4-9, TB4-10 Table 8 – Electrical Connections 480 VAC, 3-phase with ground Signal – dry contact Communication Communication Signal – dry contact Grid connection External grid protection Relay Ethernet port Analog phone line (optional) Remote e-stop (optional) (Jumpered by default) Two 350 MCM wire per phase One 1AWG ground wire Wiring rated to 90°C (194°F) 16AWG Cat 5e RJ45 Max wire length 100 m (328 ft) RJ11 16AWG Two 3” – 3 1⁄2” 3/4” 3/4” 3/4” 3/4” Summary of Customer-Provided Utilities and Materials The customer is responsible for engineering and procuring the following utilities and materials: 480-volt, 3 phase, 600 amp service Dedicated high-speed Internet physical broadband connection with a unique static IP address. An account with an Internet Service Provider along with Microsoft® Internet Explorer® web browser is required to view data from the unit through the WebCTRL® software Piping and access to the resource heat source Piping and access to the cooling source Compressed air for valve actuation Spare 120v outlets (preferable) for service tools and equipment Ethernet line to monitor the system locally Piping & supports for relief valve discharge lines Phone line (preferable) for voice communication with on-site service personnel Site lighting (preferable) to facilitate service after hours Java® is a registered trademark of Sun Microsystems, Inc. SITE DESIGN REQUIREMENTS Revision B – 09/23/2009 – Page 27 HTE66510PDF Image | PURECYCLE POWER SYSTEM MODEL 280 Application Guide
