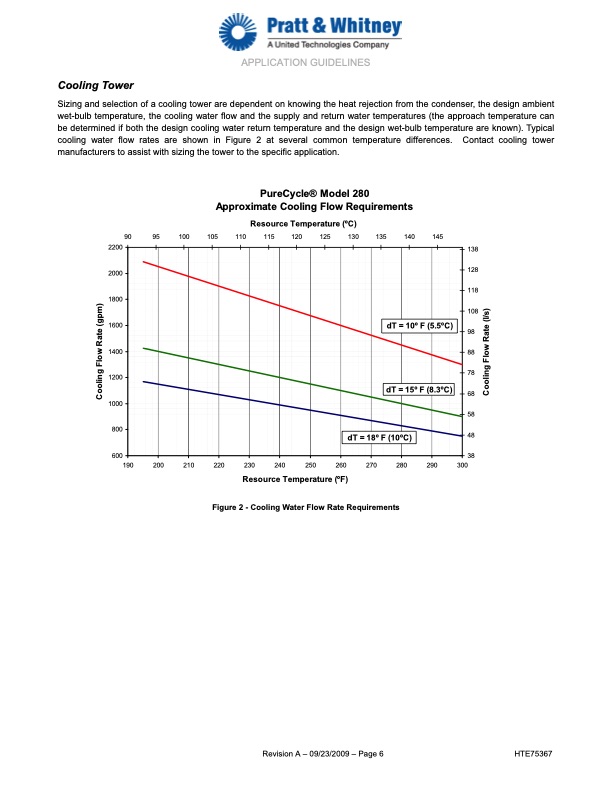

APPLICATION GUIDELINES Cooling Tower Sizing and selection of a cooling tower are dependent on knowing the heat rejection from the condenser, the design ambient wet-bulb temperature, the cooling water flow and the supply and return water temperatures (the approach temperature can be determined if both the design cooling water return temperature and the design wet-bulb temperature are known). Typical cooling water flow rates are shown in Figure 2 at several common temperature differences. Contact cooling tower manufacturers to assist with sizing the tower to the specific application. 2200 2000 1800 1600 1400 1200 1000 800 138 128 118 108 98 88 78 68 58 48 38 90 95 100 105 110 115 120 125 130 135 140 145 PureCycle® Model 280 Approximate Cooling Flow Requirements Resource Temperature (oC) dT = 10o F (5.5oC) dT = 15o F (8.3oC) dT = 18o F (10oC) 600 190 200 210 220 230 240 250 260 270 280 290 300 Resource Temperature (oF) Figure 2 - Cooling Water Flow Rate Requirements Revision A – 09/23/2009 – Page 6 HTE75367 Cooling Flow Rate (gpm) Cooling Flow Rate (l/s)PDF Image | PURECYCLE POWER SYSTEM MODEL 280 Application Guide
