Text from PDF Page: 025

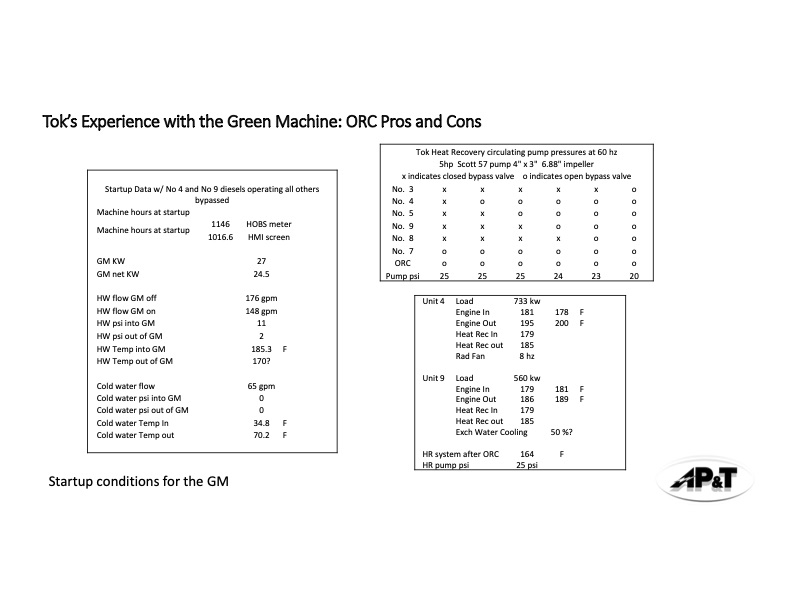

Tok’s Experience with the Green Machine: ORC Pros and Cons Startup Data w/ No 4 and No 9 diesels operating all others bypassed No.4 No.5 No.9 No.8 No.7 x x x x x o x o x x x o o 25 x x o o o o x o x x o o o o 25 24 Machine hours at startup Machine hours at startup 1146 1016.6 HOBS meter HMI screen GM KW 27 GM net KW 24.5 ORC o HW flow GM off 176 gpm HW flow GM on 148 gpm HW psi into GM 11 HW psi out of GM 2 HW Temp into GM 185.3 F HW Temp out of GM 170? Load Engine In Engine Out Heat Rec In Heat Rec out Rad Fan 733 kw 181 178 195 200 179 185 8 hz F F Cold water flow 65 gpm Cold water psi into GM 0 Cold water psi out of GM 0 Cold water Temp In 34.8 F Cold water Temp out 70.2 F Unit 9 Load Engine In Engine Out Heat Rec In Heat Rec out Exch Water Cooling 50 %? Startup conditions for the GM Pump psi 25 Unit 4 23 20 Tok Heat Recovery circulating pump pressures at 60 hz 5hp Scott 57 pump 4" x 3" 6.88" impeller x indicates No. 3 closed bypass valve o indicates open bypass valve x o o o o o o o o o o o o o HR system after ORC 164 F HR pump psi 25 psi 560 kw 179 181 186 189 179 185 F FPDF Image | Alaska Rural Energy Conference 2014
