PDF Publication Title:
Text from PDF Page: 015

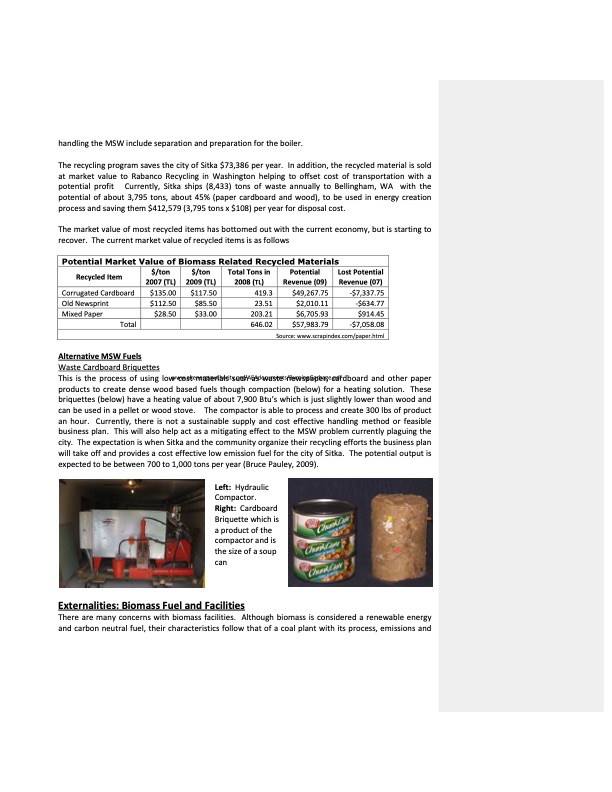

handling the MSW include separation and preparation for the boiler. The recycling program saves the city of Sitka $73,386 per year. In addition, the recycled material is sold at market value to Rabanco Recycling in Washington helping to offset cost of transportation with a potential profit Currently, Sitka ships (8,433) tons of waste annually to Bellingham, WA with the potential of about 3,795 tons, about 45% (paper cardboard and wood), to be used in energy creation process and saving them $412,579 (3,795 tons x $108) per year for disposal cost. The market value of most recycled items has bottomed out with the current economy, but is starting to recover. The current market value of recycled items is as follows Potential Market Value of Biomass Related Recycled Materials Recycled Item Corrugated Cardboard Old Newsprint Mixed Paper Total Alternative MSW Fuels $/ton 2007 (TL) $135.00 $112.50 $28.50 $/ton 2009 (TL) $117.50 $85.50 $33.00 Total Tons in 2008 (TL) 419.3 23.51 203.21 646.02 Lost Potential Revenue (07) ‐$7,337.75 ‐$634.77 $914.45 ‐$7,058.08 Source: www.scrapindex.com/paper.html Potential Revenue (09) $49,267.75 $2,010.11 $6,705.93 $57,983.79 Waste Cardboard Briquettes This is the process of using lowwcwo.satkemneragtyeaurtihaolsritys.uorcgh/AEaAsdowcuamsetnetsn/BeuwrnisnpgGaaprebarg,e.cpadrfdboard and other paper products to create dense wood based fuels though compaction (below) for a heating solution. These briquettes (below) have a heating value of about 7,900 Btu’s which is just slightly lower than wood and can be used in a pellet or wood stove. The compactor is able to process and create 300 lbs of product an hour. Currently, there is not a sustainable supply and cost effective handling method or feasible business plan. This will also help act as a mitigating effect to the MSW problem currently plaguing the city. The expectation is when Sitka and the community organize their recycling efforts the business plan will take off and provides a cost effective low emission fuel for the city of Sitka. The potential output is expected to be between 700 to 1,000 tons per year (Bruce Pauley, 2009). Left: Hydraulic Compactor. Right: Cardboard Briquette which is a product of the compactor and is the size of a soup can Externalities: Biomass Fuel and Facilities There are many concerns with biomass facilities. Although biomass is considered a renewable energy and carbon neutral fuel, their characteristics follow that of a coal plant with its process, emissions andPDF Image | COMPREHENSIVE RENEWABLE ENERGY FEASIBILITY STUDY Sitka
PDF Search Title:
COMPREHENSIVE RENEWABLE ENERGY FEASIBILITY STUDY SitkaOriginal File Name Searched:
Traviss_Study.pdfDIY PDF Search: Google It | Yahoo | Bing
