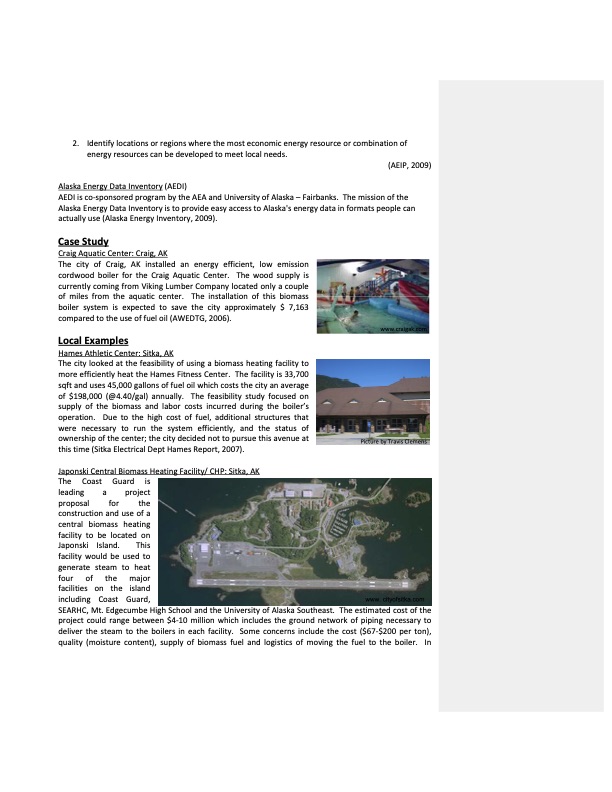

Text from PDF Page: 018
2. Identify locations or regions where the most economic energy resource or combination of energy resources can be developed to meet local needs. (AEIP, 2009) Alaska Energy Data Inventory (AEDI) AEDI is co‐sponsored program by the AEA and University of Alaska – Fairbanks. The mission of the Alaska Energy Data Inventory is to provide easy access to Alaska's energy data in formats people can actually use (Alaska Energy Inventory, 2009). Case Study Craig Aquatic Center: Craig, AK The city of Craig, AK installed an energy efficient, low emission cordwood boiler for the Craig Aquatic Center. The wood supply is currently coming from Viking Lumber Company located only a couple of miles from the aquatic center. The installation of this biomass boiler system is expected to save the city approximately $ 7,163 compared to the use of fuel oil (AWEDTG, 2006). Local Examples Hames Athletic Center: Sitka, AK The city looked at the feasibility of using a biomass heating facility to more efficiently heat the Hames Fitness Center. The facility is 33,700 sqft and uses 45,000 gallons of fuel oil which costs the city an average of $198,000 (@4.40/gal) annually. The feasibility study focused on supply of the biomass and labor costs incurred during the boiler’s operation. Due to the high cost of fuel, additional structures that were necessary to run the system efficiently, and the status of ownership of the center; the city decided not to pursue this avenue at this time (Sitka Electrical Dept Hames Report, 2007). Japonski Central Biomass Heating Facility/ CHP: Sitka, AK www.craigak.com Picture by Travis Clemens The Coast leading a proposal construction and use of a central biomass heating facility to be located on Japonski Island. This facility would be used to generate steam to heat four of the major facilities on the island including Coast Guard, SEARHC, Mt. Edgecumbe High School and the University of Alaska Southeast. The estimated cost of the project could range between $4‐10 million which includes the ground network of piping necessary to deliver the steam to the boilers in each facility. Some concerns include the cost ($67‐$200 per ton), quality (moisture content), supply of biomass fuel and logistics of moving the fuel to the boiler. In Guard is project for the www. cityofsitka.comPDF Image | COMPREHENSIVE RENEWABLE ENERGY FEASIBILITY STUDY Sitka
PDF Search Title:
COMPREHENSIVE RENEWABLE ENERGY FEASIBILITY STUDY SitkaOriginal File Name Searched:
Traviss_Study.pdfDIY PDF Search: Google It | Yahoo | Bing
