PDF Publication Title:
Text from PDF Page: 081

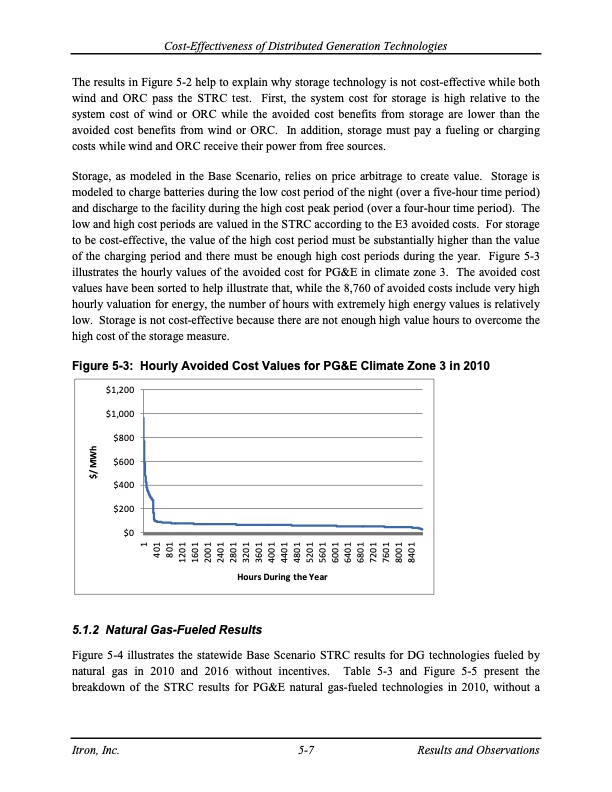

Cost-Effectiveness of Distributed Generation Technologies The results in Figure 5-2 help to explain why storage technology is not cost-effective while both wind and ORC pass the STRC test. First, the system cost for storage is high relative to the system cost of wind or ORC while the avoided cost benefits from storage are lower than the avoided cost benefits from wind or ORC. In addition, storage must pay a fueling or charging costs while wind and ORC receive their power from free sources. Storage, as modeled in the Base Scenario, relies on price arbitrage to create value. Storage is modeled to charge batteries during the low cost period of the night (over a five-hour time period) and discharge to the facility during the high cost peak period (over a four-hour time period). The low and high cost periods are valued in the STRC according to the E3 avoided costs. For storage to be cost-effective, the value of the high cost period must be substantially higher than the value of the charging period and there must be enough high cost periods during the year. Figure 5-3 illustrates the hourly values of the avoided cost for PG&E in climate zone 3. The avoided cost values have been sorted to help illustrate that, while the 8,760 of avoided costs include very high hourly valuation for energy, the number of hours with extremely high energy values is relatively low. Storage is not cost-effective because there are not enough high value hours to overcome the high cost of the storage measure. Figure 5-3: Hourly Avoided Cost Values for PG&E Climate Zone 3 in 2010 $1,200 $1,000 $800 $600 $400 $200 $0 Hours During the Year 5.1.2 Natural Gas-Fueled Results Figure 5-4 illustrates the statewide Base Scenario STRC results for DG technologies fueled by natural gas in 2010 and 2016 without incentives. Table 5-3 and Figure 5-5 present the breakdown of the STRC results for PG&E natural gas-fueled technologies in 2010, without a 1 401 801 1201 1601 2001 2401 2801 3201 3601 4001 4401 4801 5201 5601 6001 6401 6801 7201 7601 8001 8401 $/MWh Itron, Inc. 5-7 Results and ObservationsPDF Image | Cost-Effectiveness of Distributed Generation Technologies
PDF Search Title:
Cost-Effectiveness of Distributed Generation TechnologiesOriginal File Name Searched:
SGIP_CE_Report_Final.pdfDIY PDF Search: Google It | Yahoo | Bing
