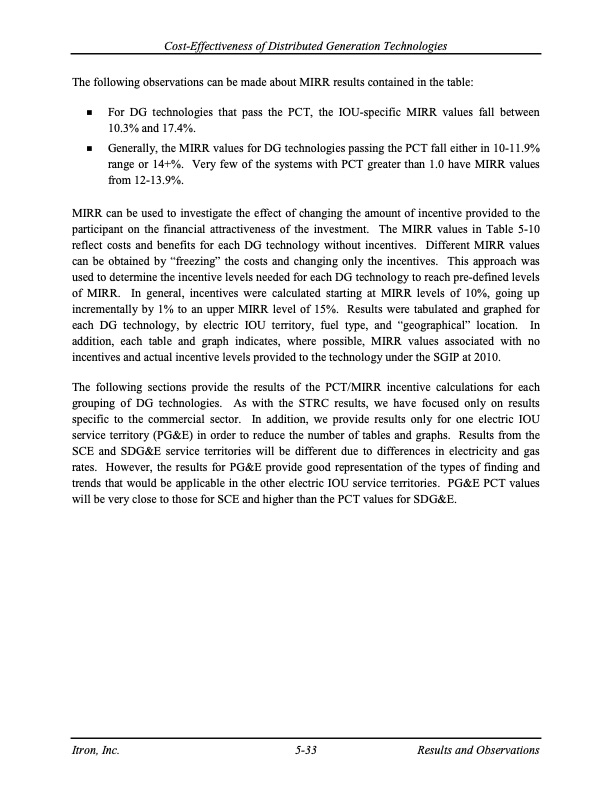

Cost-Effectiveness of Distributed Generation Technologies The following observations can be made about MIRR results contained in the table: For DG technologies that pass the PCT, the IOU-specific MIRR values fall between 10.3% and 17.4%. Generally, the MIRR values for DG technologies passing the PCT fall either in 10-11.9% range or 14+%. Very few of the systems with PCT greater than 1.0 have MIRR values from 12-13.9%. MIRR can be used to investigate the effect of changing the amount of incentive provided to the participant on the financial attractiveness of the investment. The MIRR values in Table 5-10 reflect costs and benefits for each DG technology without incentives. Different MIRR values can be obtained by “freezing” the costs and changing only the incentives. This approach was used to determine the incentive levels needed for each DG technology to reach pre-defined levels of MIRR. In general, incentives were calculated starting at MIRR levels of 10%, going up incrementally by 1% to an upper MIRR level of 15%. Results were tabulated and graphed for each DG technology, by electric IOU territory, fuel type, and “geographical” location. In addition, each table and graph indicates, where possible, MIRR values associated with no incentives and actual incentive levels provided to the technology under the SGIP at 2010. The following sections provide the results of the PCT/MIRR incentive calculations for each grouping of DG technologies. As with the STRC results, we have focused only on results specific to the commercial sector. In addition, we provide results only for one electric IOU service territory (PG&E) in order to reduce the number of tables and graphs. Results from the SCE and SDG&E service territories will be different due to differences in electricity and gas rates. However, the results for PG&E provide good representation of the types of finding and trends that would be applicable in the other electric IOU service territories. PG&E PCT values will be very close to those for SCE and higher than the PCT values for SDG&E. Itron, Inc. 5-33 Results and ObservationsPDF Image | Cost-Effectiveness of Distributed Generation Technologies
