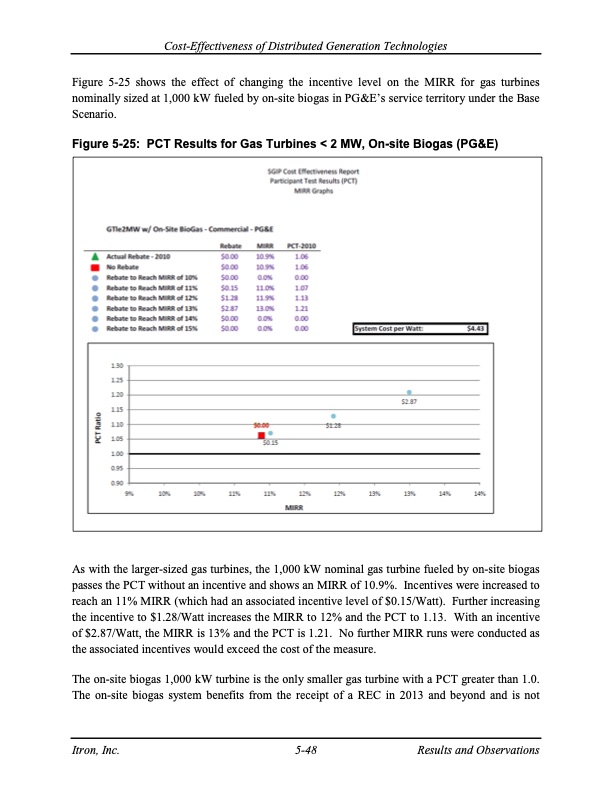

Cost-Effectiveness of Distributed Generation Technologies Figure 5-25 shows the effect of changing the incentive level on the MIRR for gas turbines nominally sized at 1,000 kW fueled by on-site biogas in PG&E’s service territory under the Base Scenario. Figure 5-25: PCT Results for Gas Turbines < 2 MW, On-site Biogas (PG&E) As with the larger-sized gas turbines, the 1,000 kW nominal gas turbine fueled by on-site biogas passes the PCT without an incentive and shows an MIRR of 10.9%. Incentives were increased to reach an 11% MIRR (which had an associated incentive level of $0.15/Watt). Further increasing the incentive to $1.28/Watt increases the MIRR to 12% and the PCT to 1.13. With an incentive of $2.87/Watt, the MIRR is 13% and the PCT is 1.21. No further MIRR runs were conducted as the associated incentives would exceed the cost of the measure. The on-site biogas 1,000 kW turbine is the only smaller gas turbine with a PCT greater than 1.0. The on-site biogas system benefits from the receipt of a REC in 2013 and beyond and is not Itron, Inc. 5-48 Results and ObservationsPDF Image | Cost-Effectiveness of Distributed Generation Technologies
