Text from PDF Page: 068

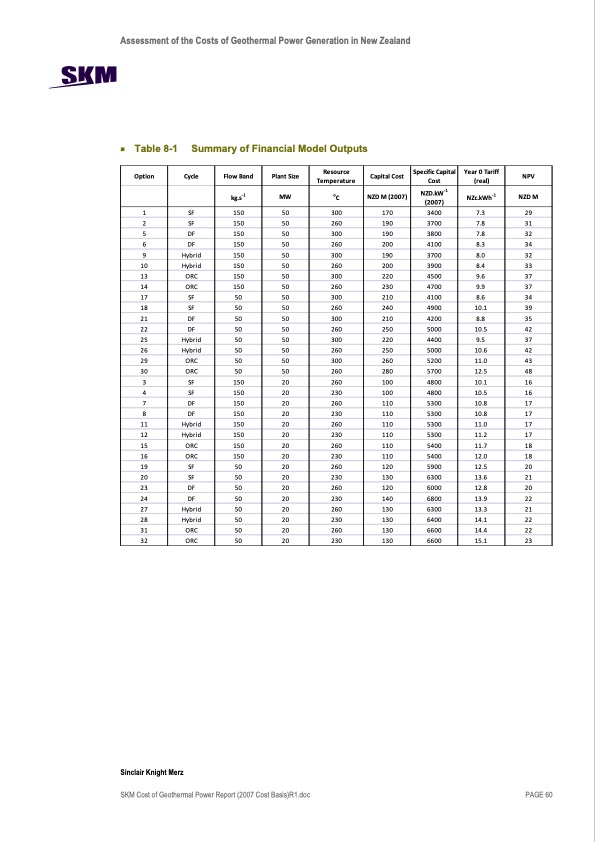

Assessment of the Costs of Geothermal Power Generation in New Zealand Table 8-1 Summary of Financial Model Outputs Option Cycle Flow Band Plant Size Resource Temperature Capital Cost Specific Capital Cost Year 0 Tariff (real) NPV kg.s‐1 MW oC NZD M (2007) NZD.kW‐1 (2007) NZc.kWh‐1 NZD M 1 SF 150 50 300 170 3400 7.3 29 2 SF 150 50 260 190 3700 7.8 31 5 DF 150 50 300 190 3800 7.8 32 6 DF 150 50 260 200 4100 8.3 34 9 Hybrid 150 50 300 190 3700 8.0 32 10 Hybrid 150 50 260 200 3900 8.4 33 13 ORC 150 50 300 220 4500 9.6 37 14 ORC 150 50 260 230 4700 9.9 37 17 SF 50 50 300 210 4100 8.6 34 18 SF 50 50 260 240 4900 10.1 39 21 DF 50 50 300 210 4200 8.8 35 22 DF 50 50 260 250 5000 10.5 42 25 Hybrid 50 50 300 220 4400 9.5 37 26 Hybrid 50 50 260 250 5000 10.6 42 29 ORC 50 50 300 260 5200 11.0 43 30 ORC 50 50 260 280 5700 12.5 48 3 SF 150 20 260 100 4800 10.1 16 4 SF 150 20 230 100 4800 10.5 16 7 DF 150 20 260 110 5300 10.8 17 8 DF 150 20 230 110 5300 10.8 17 11 Hybrid 150 20 260 110 5300 11.0 17 12 Hybrid 150 20 230 110 5300 11.2 17 15 ORC 150 20 260 110 5400 11.7 18 16 ORC 150 20 230 110 5400 12.0 18 19 SF 50 20 260 120 5900 12.5 20 20 SF 50 20 230 130 6300 13.6 21 23 DF 50 20 260 120 6000 12.8 20 24 DF 50 20 230 140 6800 13.9 22 27 Hybrid 50 20 260 130 6300 13.3 21 28 Hybrid 50 20 230 130 6400 14.1 22 31 ORC 50 20 260 130 6600 14.4 22 32 ORC 50 20 230 130 6600 15.1 23 Sinclair Knight Merz SKM Cost of Geothermal Power Report (2007 Cost Basis)R1.doc PAGE 60PDF Image | Current Costs of Geothermal Power Generation in New Zealand
